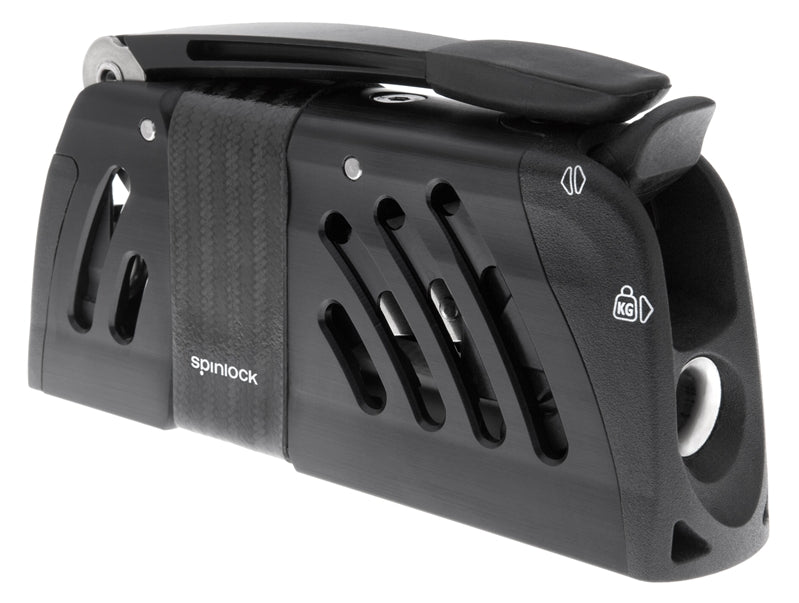

Spinlock XXC Single Power Clutch CTiC 5/16" to 1/2" - Remote Release

Item #


Usually ships within 1-3 days

Product Description

Spinlock XXC Single Power Clutch CTiC 5/16" to 1/2" - Remote Release, No Handle

Meets growing demand for an ultra high performance Clutch

Choose XXC for working loads/diameters that can't be held reliably with conventional clutches but where the winch release of the ZS Jammer is impractical

Choose ZS for bigger diameters/high loads where winched release is  positive safety feature and instant release is unnecessary


Rope Range - 8mm - 12mm (5/16" - 1/2")

Load - 1200kg - 2350kg (2640lb - 5180lb)

Max SWL - 2350kg (5180lb)

Weight - 0.806kg (1.78lb)

Fasteners - 2 x M8 (5/16") Titanium Hex Head (Supplied)

Features and Benefits:

  • Holds up to 2350kg working load, 30% higher than the standard XX0812, yet still provides controlled release under load

  • XXC0812 delivers a 50% increase in power: weight, yet is 15% lighter

  • Lightened handle and body; locally reinforced with unidirectional carbon fiber and with critical components in Titanium*

  • Ceramic coated jaws hold hybrid covered lines at loads up to 2350kg and help resist heat generated at higher line speeds for extended jaw life

  • Optimized for high performance 8-12mm (5/16-1/2”) line diameters

  • Internal Torlon roller bearings ensure lasting performance and durability under high loads

  • Easy on-deck access for removing complete internal assembly even when banked together

  • Access ports for fresh water flushing

  • Black, silver and amber versions available

  • NB: XXC is available with 17-4PH stainless steel parts for teams competing in classes where Titanium is prohibited

    Click Here for Installation & Usage Guide

    Click Here for XXC Clutch Drill Template
