Spinlock XXB Single Side Mount Power Clutch 5/16" to 1/2"

Item #


Usually ships within 1-3 days
Material : Black
Side Mount : Starboard Mount
Remote Release : No

Product Description

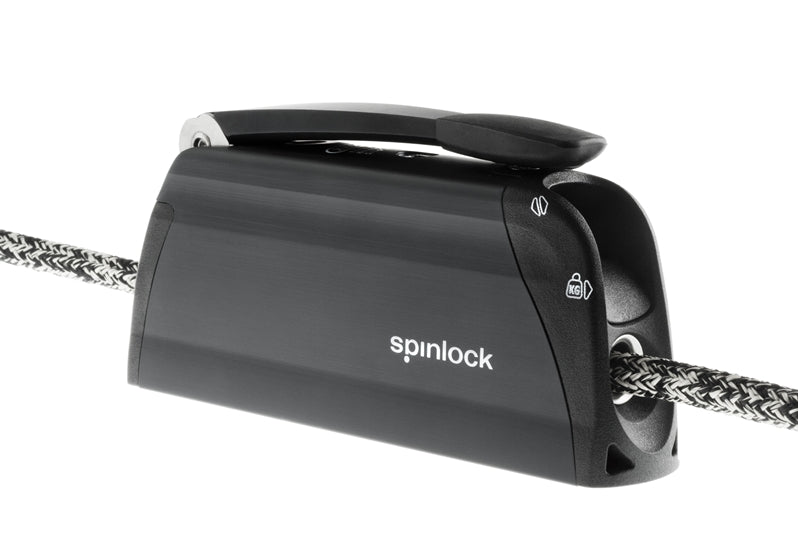

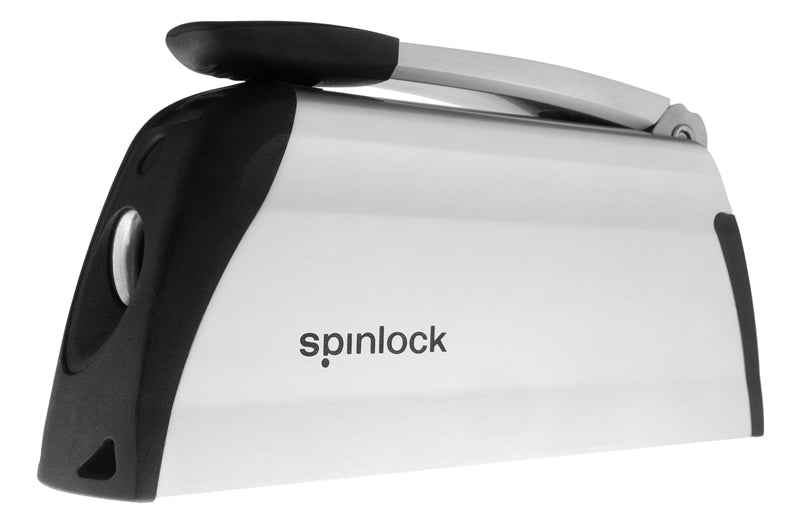

Spinlock XXB Single Side Mount Power Clutch 5/16" to 1/2"

The XX Range of clutches holds loads 50% higher than any conventional clutch, with smooth and controlled release.

The only secure clutch solution for genoa and spinnaker halyards on performance yachts from 35-50 feet.

Side mounting is the neatest solution for spars, side decks and coamings. Handed port or starboard; use bolted version for conventional installation, or bonded version for building directly into deck or rig to save installation weight


Rope Range - 8mm - 12mm (5/16" - 1/2")

Load - 1200kg - 2300kg (2640lb - 5070lb)

Max SWL - 2300kg (5070lb)

Weight - 1.101kg (2.43lb)

Fasteners - 5 x M6 (1/4") CSK Head (Supplied)

Features and Benefits:

XXA0812 offers users high performance on lines 8-12mm, loads up to 1800kgs. For users looking for enhanced performance on small diameter blended covered lines, load holding up to 2350kgs and excellent resistance to abrasion on powered hoists and control, look at the new XXB0812.

Also available in the XX Range  is the XXC with ultra high performance and ultra lightweight body.

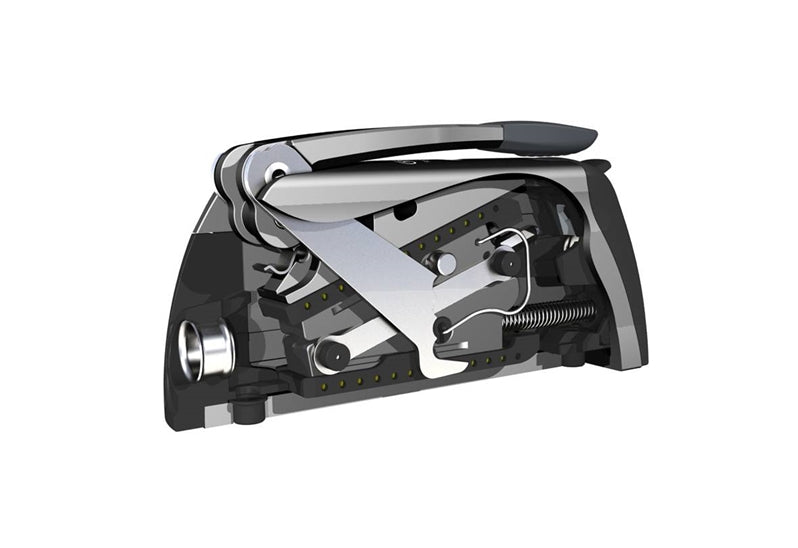

  • Latest jaw technology offers consistent holding of blended covered ropes

  • Optimized for high performance 8mm - 12mm (5/16" - 1/2”) line diameters

  • Available white coated, black anodized or silver polished alloy to match deck or rig

  • Side mount versions available

  • Lock Open version available

  • Access ports for fresh water flushing

  • Smooth controlled release action

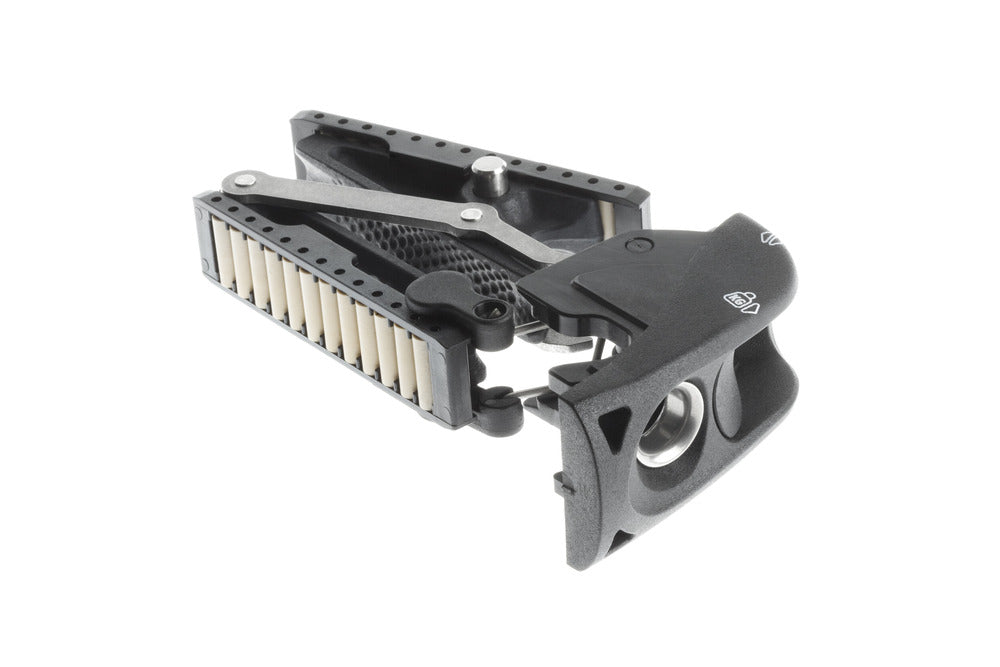

  • One-piece jaw set is easy to remove and clean

  • Line height optimized for correct lead to winch

  • Can be set up for remote operation with no handle

  • Click Here for Installation & Usage Guide

    Click Here for XXB Clutch Drill Template
