Product Description

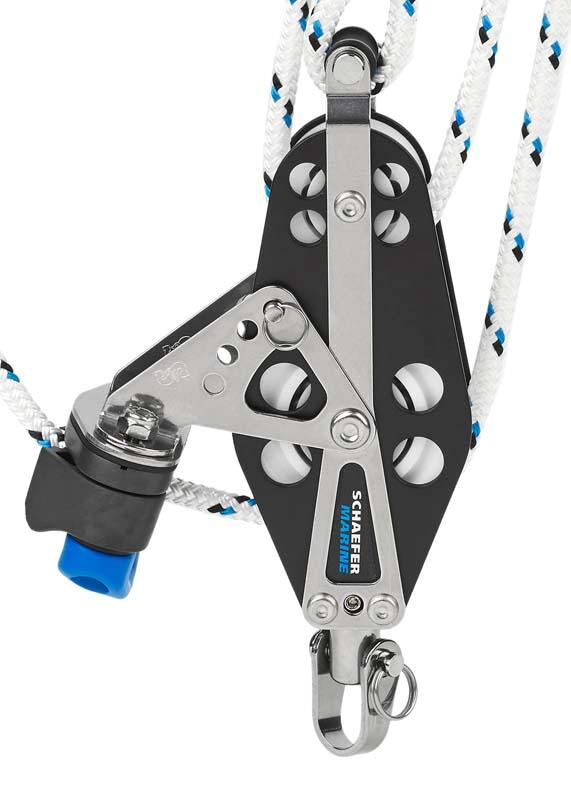

Schaefer Ball Bearing Fiddle Block with Adj. Cam and Becket
Fiddle block with ball bearing delrin(tm) sheaves, becket, adjustable cam cleat. Works with 506-45 for a 4:1 purchase. Delrin(tm) ball bearing sheaves provide low-friction yet high safe working loads. Adjustable cam bracket enables proper cam angle for easy line engagement.
Specifications:
Sheave Dia.: 2 in. (51 mm)
Sheave Width: 9/16 in. (14 mm)
Pin Dia.: 1/4 in. (6 mm)
Max Line: 7/16 in. (11 mm)
Length: 7 3/16 in. (183 mm)
Width: 4 1/8 in. (105 mm)
Thickness: 2 5/16 in. (58 mm)
SWL: 1500 lbs. (680 kg)
Weight: 13.6 oz. (386 g)
