Product Description

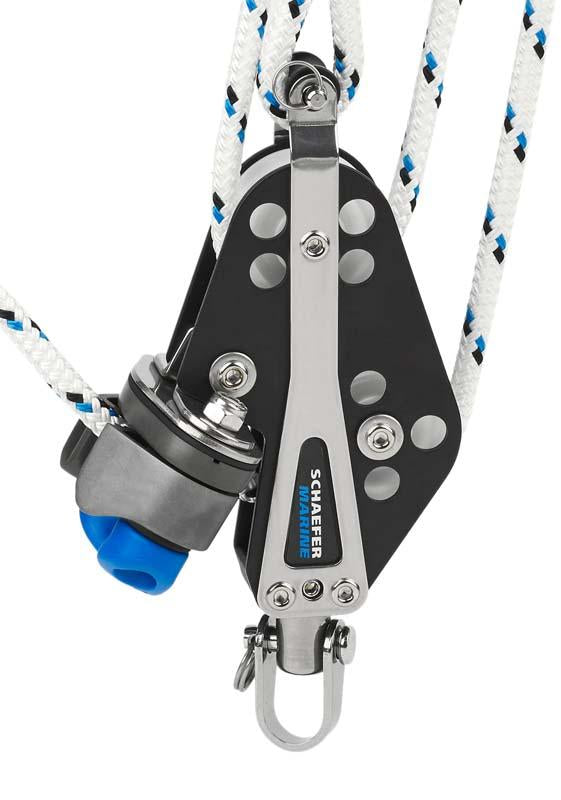

Schaefer Aluminum Fiddle Block w/ Cam & Becket
Fiddle block with anodized aluminum cheeks, cam cleat and becket. Works with 504-45 for a 4:1 purchase. Fast entry cam cleat ensures smooth line engagement. Removable becket allows pre-spliced lines to be easily attached. Delrin(tm) sheaves ensure smooth operation and high safe working load.
Specifications:
Sheave Dia.: 2 in. (51 mm)
Sheave Width: 9/16 in. (14 mm)
Pin Dia.: 1/4 in. (6 mm)
Max. Line Dia.: 7/16 in. (11 mm)
Thickness: 2 5/16 in. (58 mm)
Width: 3 7/32 in. (82 mm)
Length: 6 13/32 in. (163 mm)
SWL: 1750 lbs. (795 kg)
Weight: 11.6 oz. (329 g)
