Product Description

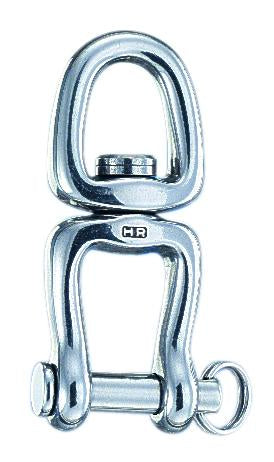

Wichard 2 49/64" Swivel w/ Clevis Pin & Ball Bearing
Features
Weight - 0.203 lbs (92 g)
Length - 2 49/64" (70mm)
Working Load - 3527 lbs (1600 kg)
Breaking Load - 6170 lbs (2800 kg)
A - 35/64" (14mm)
B - 53/64" (21mm)
C - 7/16" (11mm)
Diameter - 9/32" (7mm)
Description
HR forged swivel (17.4 Ph) with only one opening side and one eye
With ball bearings for an easier rotation
Outstanding working and breaking loads
Applications
Link two pieces which have different rotation
For applications requiring an easier rotation
Material
HR stainless steel 17.4 PH
