Product Description

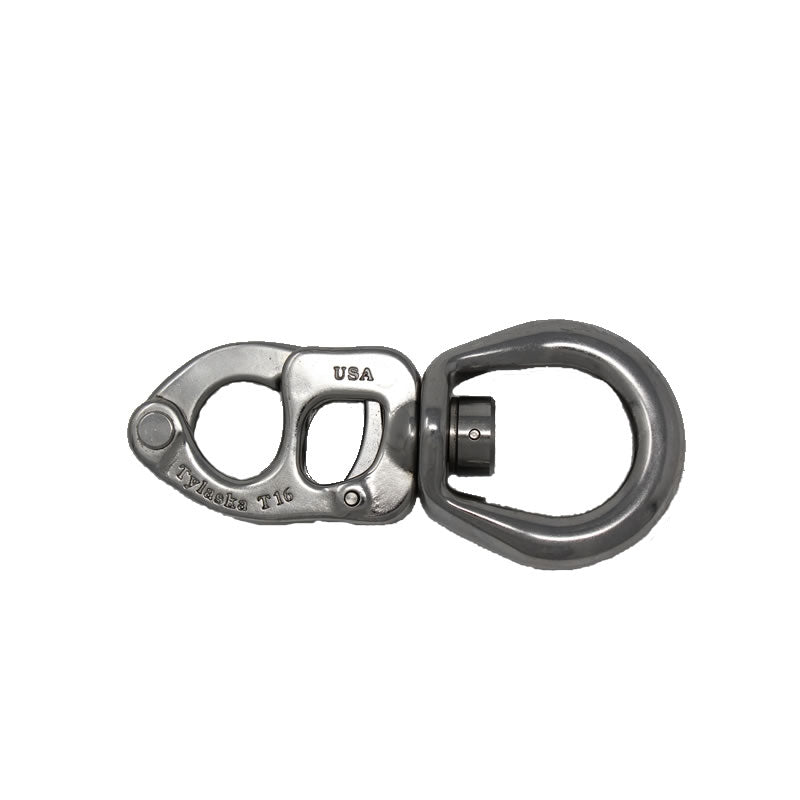

Tylaska T16 Large Bail Snap Shackle
The T16 is a larger shackle designed for mid to large sized boats. The T-16 has a breaking strength of 16,000 pounds and weighs only 9.1 ounces in the standard bail configuration. Ideal for 40 to 50 foot sailboats. The T16 is intended for static load applications only and is NOT approved for lifting applications.
Specifications
Shackle Type - T16 Large Bail
Safe Working Load(lb.) - 8,000 (3,630kg)
Breaking Strength(lb.) - 16,000 (7,260kg)
Boat Size(ft.) - 40'-50'
Weight(oz.) - 12.8 (363g)
Dimensions
A(in.) - 0.90" (22.9mm)
B(in.) - 1.31" (33.3mm)
C(in.) - 5.41" (137.5mm)
D(in.) - 0.53" (13.5mm)
E(in.) - .50" (12.7mm)
F(in) - .73" (18.5mm)
