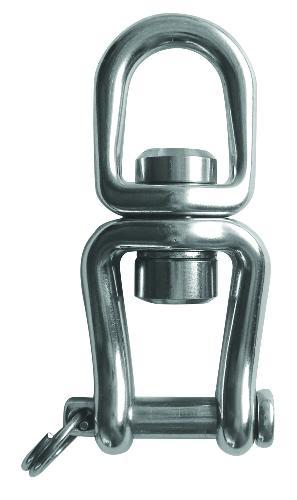

Tylaska 7 5/8" T40 Standard/Clevis Bail Swivel

Tylaska 7 5/8" T40 Standard/Clevis Bail Swivel

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.

Specifications:

Shackle Type: T40 Standard/Clevis Bail Swivel

Safe Working Load (lb.): 20,000 (9,070kg)

Breaking Strength (lb.): 40,000 (18,140kg)

Weight (oz.): 54.9

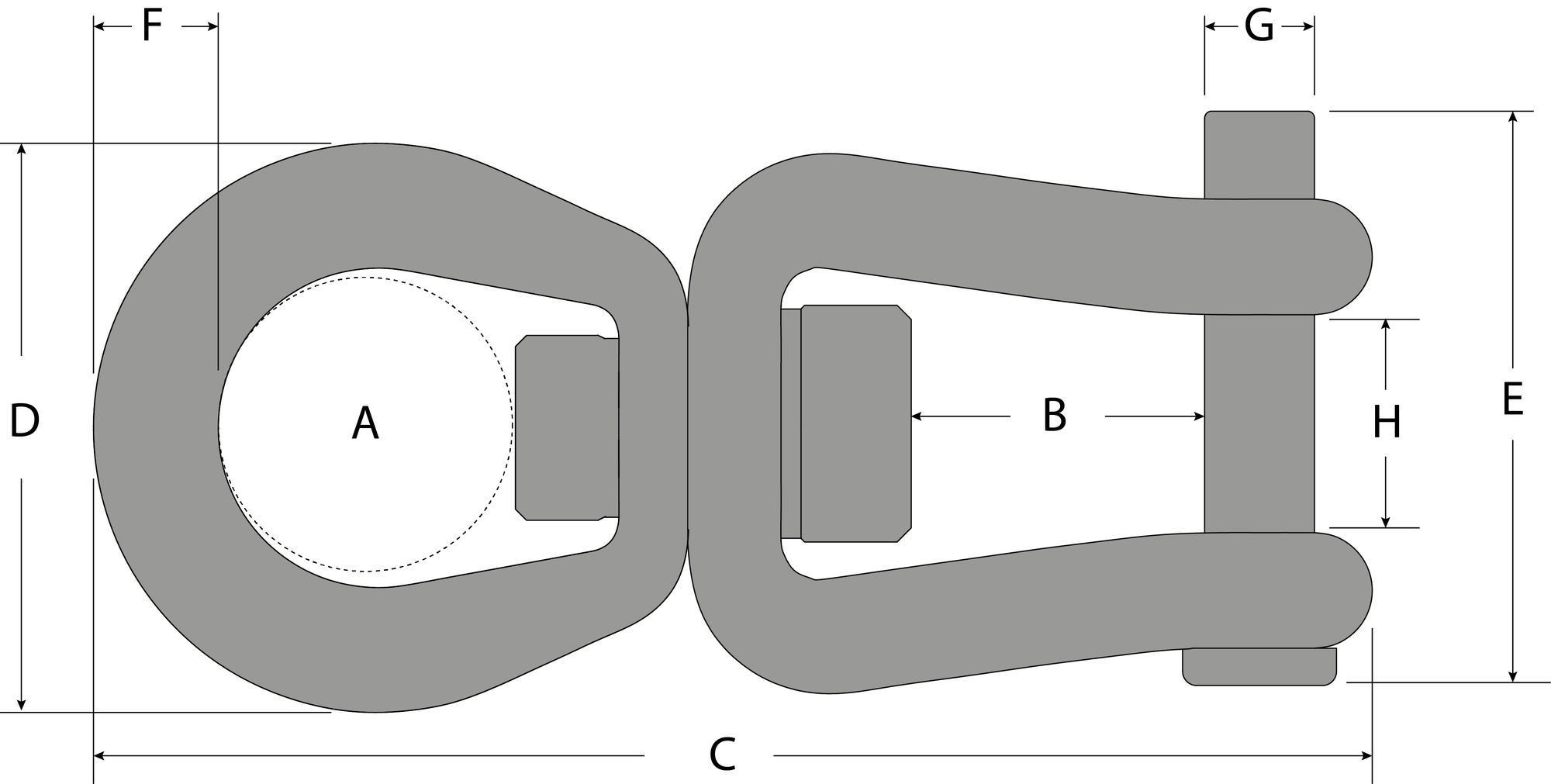

Dimensions:

A (in.): 1.79" (45.5mm)

B (in.): 2.00" (50.8mm)

C (in.): 8.80" (223.5mm)

D (in.): 3.28" (83.3mm)

E (in.): 3.90" (99.1mm)

F (in.): 0.74" (18.8mm)

G (in.): 0.75" (19.1mm)

H (in.): 1.50" (38.1mm)
