Tylaska 3 3/4" T8 Clevis Bail Snap Shackle

Item #

TY1008-CR

Usually ships within 1-3 days

Product Description

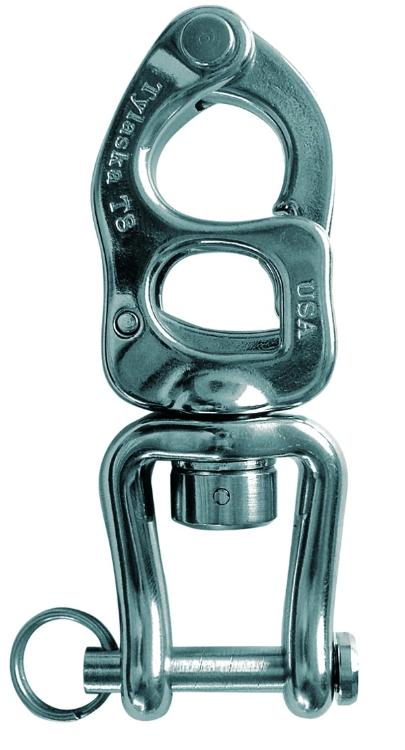

Tylaska 3 3/4" Clevis Bail Snap Shackle

Tylaska T8 Snap Shackles are perfect for applications requiring high strength and low weight. They have a breaking strength of 8,000 lbs and weigh only 3.5 ounces in the standard bail configuration. Ideal for the 24 to 36 foot sailboat.

Specifications

Shackle Type: T8 Clevis Bail

Safe Working Load (lb.): 4,000 (1,810kg)

Breaking Strength (lb.): 8,000 (3,630kg)

Boat Size (ft.): 24' - 36'

Weight (oz.): 4.3 (122g)

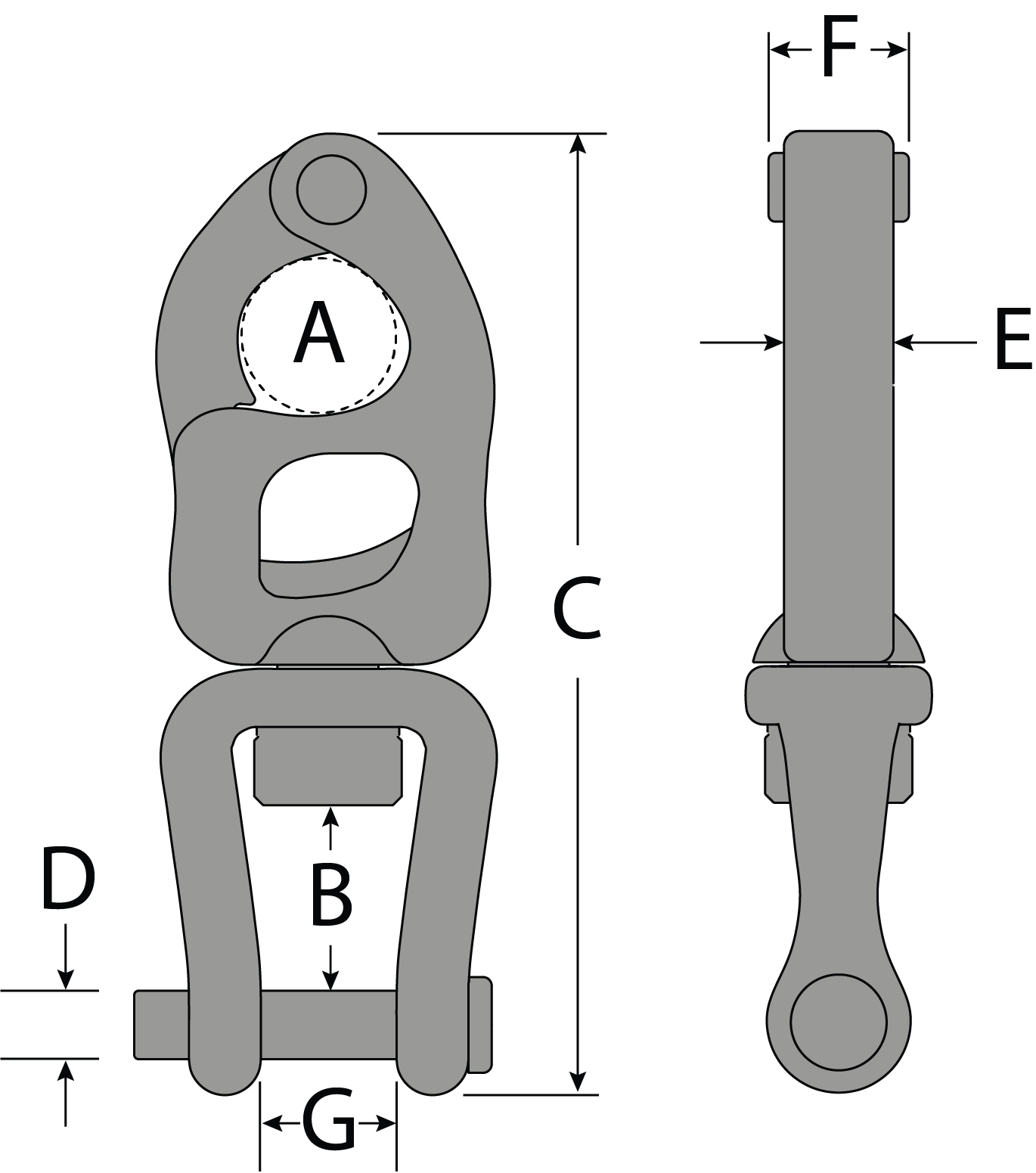

Dimensions:

A (in.): 0.63" (16mm)

B (in.): 0.67" (17mm)

C (in.): 3.70" (94.1mm)

D (in.): 0.28" (7.1mm)

E (in.): 0.38" (9.7mm)

F (in.): 0.54" (13.7mm)

G (in.): 0.53" (13.5mm)
