Product Description

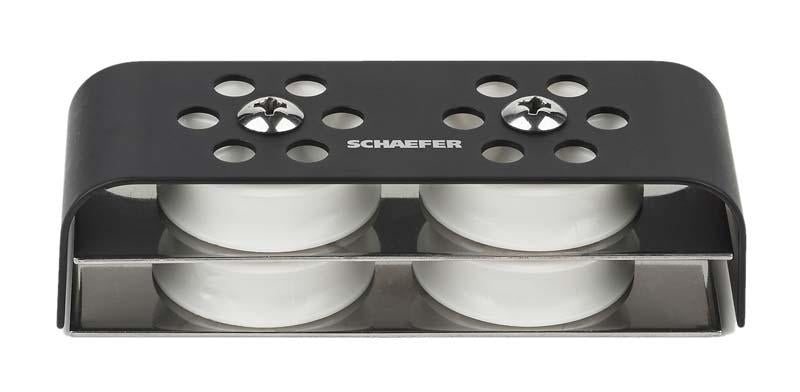

Schaefer 5 Series 2 over 2 Aluminum Deck Organizer
5 Series 2 Sheave over 2 sheave Aluminum deck organizer. Stainless Steel base and anodized aluminum top strap provide a high strength base. Delrin(tm) sheaves ensure smooth operation and high strength. Boats to 32'. Aluminum Sheave is available - order sheave #62-023-15cw - direct replacement for Delrin Sheave.
Specifications:
Sheave Dia.: 2 in. (51 mm)
Max Line: 7/16 in. (11 mm)
Length: 5 25/32 in. (145 mm)
Width: 2 in. (51 mm)
Height: 1 1/2 in. (38 mm)
Fasteners: (2) 1/4" RH (6 mm)
C/C: 2 1/4 in. (57 mm)
SWL: 1950 lbs. (885 kg)
Weight Alum.: 15.9 oz. (451 g)
