Product Description

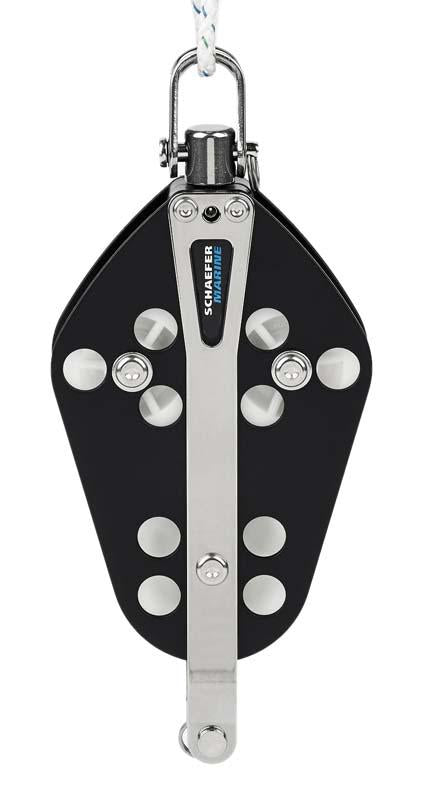

Schaefer Aluminum Fiddle Block with Becket
Fiddle block with anodized aluminum cheeks and becket. Works with 704-45 for a 4:1 purchase. Delrin(tm) sheaves feature a single top sheave and two in-line sheaves to spread the load reducing friction and chafe. Swivel head design may be locked in place to avoid twist. Removable becket allows for pre-spliced lines to be used.
Specifications:
Upper Sheave Dia.: 2 3/8 in. (60 mm)
Lower Sheave Dia.: 1 13/16 in. (46 mm)
Thickness: 1 3/32 in. (28 mm)
Width: 3 31/32 in. (101 mm)
Length: 8 25/32 in. (223 mm)
SWL: 2250 lbs.(1020 kg)
Weight: 1 lb. 7 oz. (652 g)
