Schaefer Spring Loaded Block w/SS Slide Max Line 9/16" (14 mm)

Item #

08-92

Usually ships within 1-3 days

Product Description

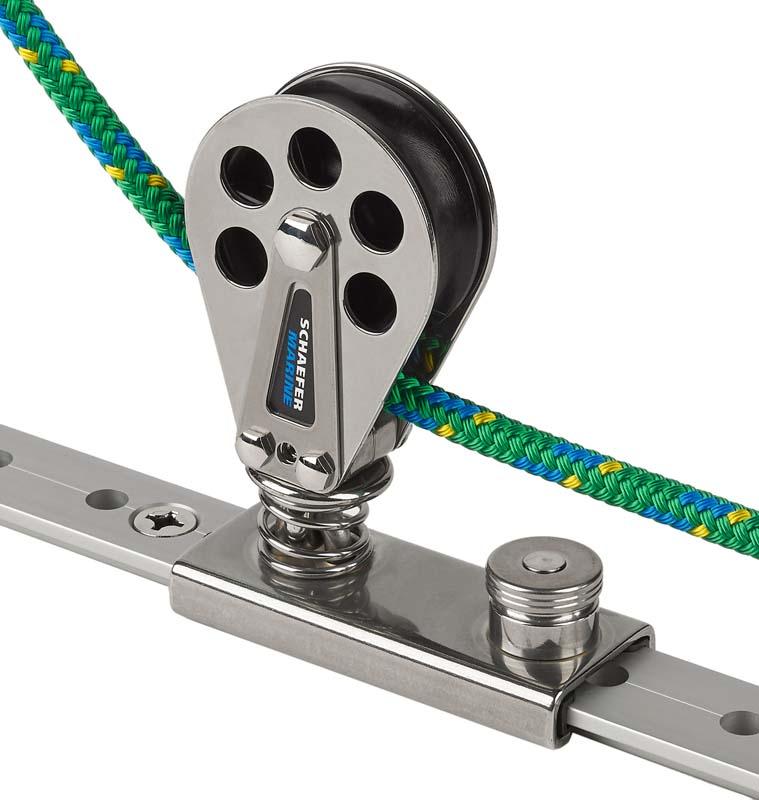

Schaefer Spring Loaded Block w/SS Slide Max Line 9/16" (14 mm)

08-92 Stand up spring block for 1-1/4" T-Track. Delrin(tm) sheave runs on Nomex(tm)/Teflon(tm) bearing ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.

Specifications:

  • Track Size: 1 1/4" x 3/16" (32 mm x 5 mm)

  • Boat Size Up To LOA, Displ., Sail Area: 38', 18000 lbs., 715 sq. ft. (11.5 m, 8182 kg, 66 m2)

  • Sheave Dia.: 2 3/8 in. (60 mm)

  • Max Line: 9/16 in. (14 mm)

  • Length: 4 in. (102 mm)

  • Width: 1 9/16 in. (39 mm)

  • Height: 4 7/8 in. (124 mm)

  • Bearing Height: 2 23/32 in. (69 mm)

  • SWL: 2750 lbs. (1250 kg)

  • Weight: 1 lb. (454 g)
