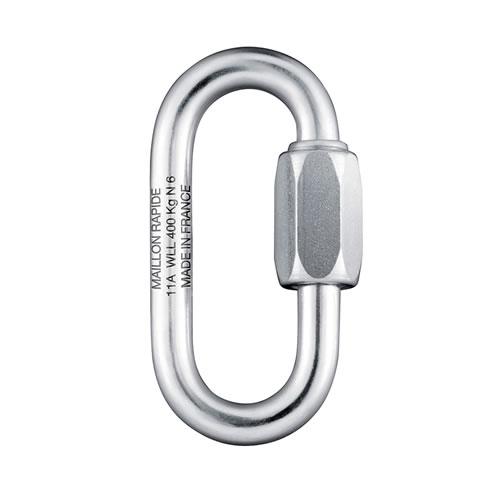

Peguet 8mm (5/16") Stainless PPE Standard Maillon Rapide Quick Link

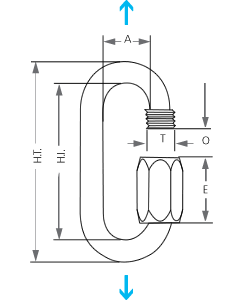

The original oval shape was developed on the principle of a chain link fitted with manual nut opening. This shape reflects the spirit of Maillon Rapide quick links connectors.Specifications:
Diameter: 8MM or 5/16"
Weight: 79g (0.1742 lbs)
Breaking Load: 55 kN
Rod: Standard X2 Cr Ni, Mo 17-12-2 (1.4404), AISI 316L
Nut: Standard X2 Cr Ni
18/12 chrome-molybdenum steel with very low carbon content, protected from inter-granular corrosion. (Rod & Nut)
Fit in environments where 18.10 steels stand up corrosion, excepted those involving nitric acid. (Rod & Nut)
2/2,5 molybdenum content allowing its use in more applications than those complying with 18.10 steels, particularly with sulphuric acids and chlorides in marine environments. (Rod & Nut)
ط F 2,5 3,0 3,5 4,0 5,0 6,0 7,0 8,0 9,0 10,0 12,0 14,0 16,0 18,0 20,0
Torque 0,15 0,30 0,60 0,70 0,80 1,20 2,50 3,00 4,50 7,00 9,00 12,00 18,00 30,00 40,00
Keep to the working load limit WLL engraved in kg.
Visual check of complete nut screwing compulsory; no thread must be showing.
Maillon Rapide quick links are only to be loaded along the major axis.
Maillon Rapide quick links should be carefully checked at regular intervals. If you are in any doubt about the safety of a quick link after checking, replace it with a new one.
When fastened with a wrench up to the proper tightening torque, Maillon Rapide quick links are considered a permanent connector.
Maillon Rapide should always be fitted with parts made of same material.
When connected with chain, Maillon Rapide quick links should be of the same diameter.
Never connnect any Maillon Rapide quick links onto a lifting chain.
Stainless steel Maillon Rapide quick links may be used in salt water.
P.P.E. EN 362 & EN 12275 Standards: Maillon Rapide quick links must be accopagnied by user instructions when sold or used as a connector on P.P.E. (Personal Protective Equipment).
