Peguet 14mm (9/16") Galvanized Steel Square Maillon Rapide Quick Link

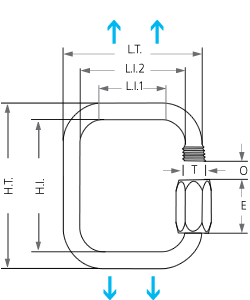

Square shape: the finest connector when connecting two flat webbing of the same width.
Diameter: 14MM or 9/16"
Weight: 440g (0.970 lbs)
Working Load: 1,800kg (3,968 lbs)
Breaking Load: 9,000kg (19,841 lbs)
Zinc plated steel
Rod: Steel FM-8, Standard AFNOR 35-051, EN10016-2
Nut: Steel A-42-FM, 11 SMR 30 (1.0715), EN 10087
Rod: custom-made steel used in surface processing, providing complete strength towards traction.
Nut: high safety steel (lead-free, systematic control carried out after drawing through Eddy currents and ultrasounds).
Surface processing made through electrolytic coating on the entire material (rod & nut).
ط F 2,5 3,0 3,5 4,0 5,0 6,0 7,0 8,0 9,0 10,0 12,0 14,0 16,0 18,0 20,0
Torque 0,15 0,30 0,60 0,70 0,80 1,20 2,50 3,00 4,50 7,00 9,00 12,00 18,00 30,00 40,00
Keep to the working load limit WLL engraved in kg.
Visual check of complete nut screwing compulsory; no thread must be showing.
Maillon Rapide quick links are only to be loaded along the major axis.
Maillon Rapide quick links should be carefully checked at regular intervals. If you are in any doubt about the safety of a quick link after checking, replace it with a new one.
When fastened with a wrench up to the proper tightening torque, Maillon Rapide quick links are considered a permanent connector.
Maillon Rapide should always be fitted with parts made of same material.
When connected with chain, Maillon Rapide quick links should be of the same diameter.
Never connect any Maillon Rapide quick links onto a lifting chain.
Stainless steel Maillon Rapide quick links may be used in salt water.
P.P.E. EN 362 & EN 12275 Standards: Maillon Rapide quick links must be accompanied by user instructions when sold or used as a connector on P.P.E. (Personal Protective Equipment).
