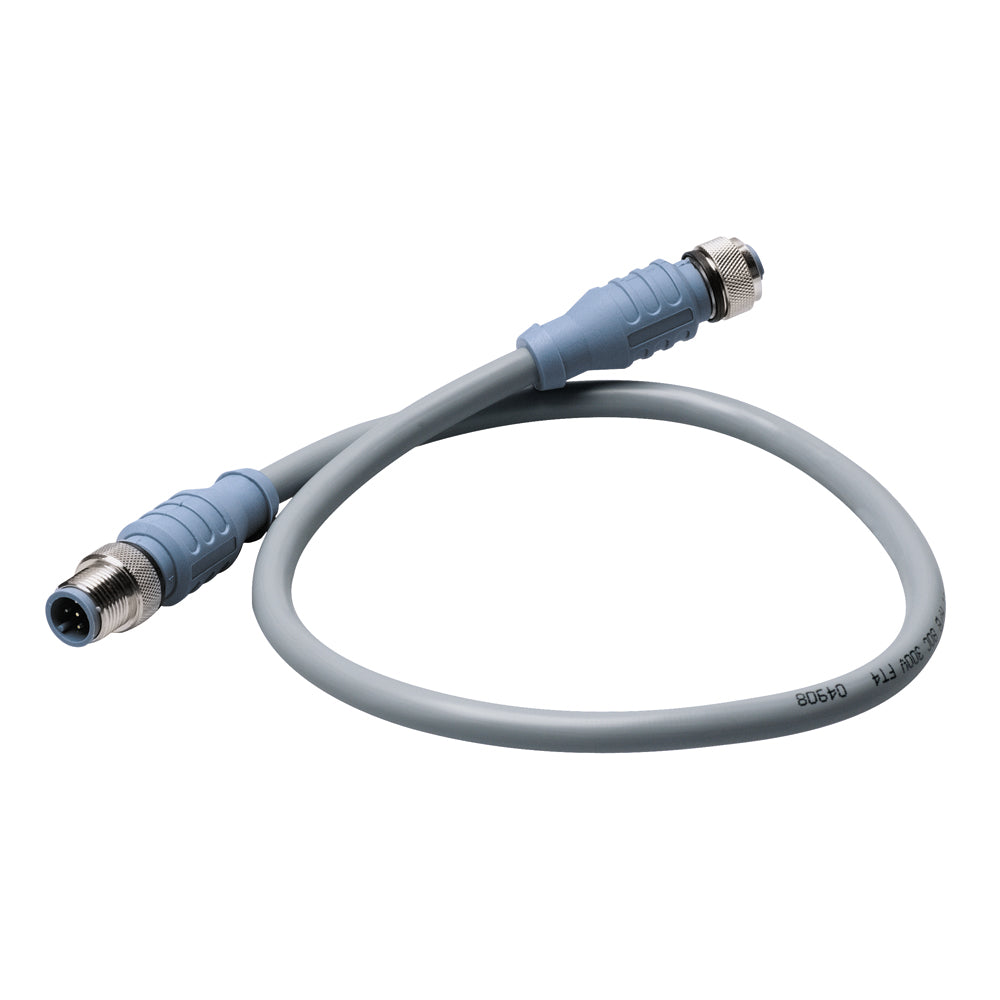

Maretron Micro Double-Ended Cordset - 8M [CM-CG1-CF-08.0]

Item #

CWR-33360

$65.00

Usually ships within 1-3 days

Mechanical

Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray

Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray

Contact Mat/Plating: Brass/Gold

Coupling Nut Mat/Plating: Brass/Nickel

Connector Outside Diameter: 0.59?Electrical

Current Rating: 4.0 Amps

Voltage Rating: 250 V
Cable

Outer Jacket Mat/Color: PVC/Gray

Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)

Number of Conductors: 4X22 AWG, 22 AWG Drain Wire

Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
Environmental

Protection Class: IEC IP68, NEMA 1,3,4,6P

Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
Approvals

(Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V

(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4

NMEA: NMEA 2000 Approved
