Product Description

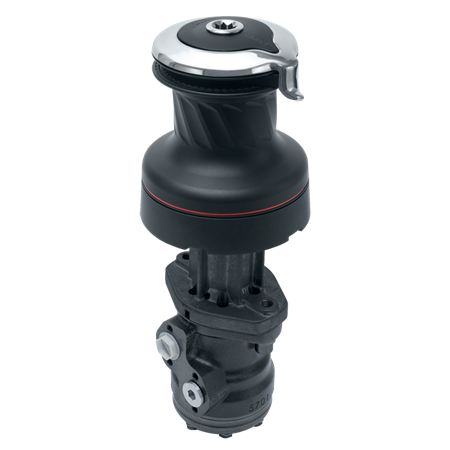

Harken #60 2 Speed Hydraulic Self-Tailing Radial Winch - Aluminum
Powered Radial winches allow crew to trim any size sail with the push of a button. Composite roller bearings reduce friction under load and don’t require lubrication. Load-carrying gears and pins are 17-4PH stainless steel for strength and durability.
Specifications:
Fasteners: 5/16" HH, 5/16" SH (M8 HH, M8 SH)
Number of Fasteners: 6
Gear & Power Ratio:
Gear 1 - 4.8
Gear 2 - 14.4
Power Ratio 1 - 20.3
Power Ratio 2 - 61
Dimensions:
Hydraulic (L): 9 1/4" (234mm)
Hydraulic (N): 5 1/8" (130mm)
Material: Aluminum
Configuration: Self-tailing
Speed: 2
Drum Diameter: 4 3/4" (120mm)
Base Diameter: 9 5/16" (236mm)
Height: 9 11/16" (246mm)
Weight: 22.5 lbs (10.2kg)
Weight of Winch and Motor: 39.1 lbs (17.7kg)
Motor Weight: 16.6 lbs (7.5kg)
Line Entry Height: 4 9/16" (116mm)
Minimum Line Diameter: 5/16" (8mm)
Maximum Line Diameter: 5/8" (16mm)
Fastener Circle: 8" (204mm)
