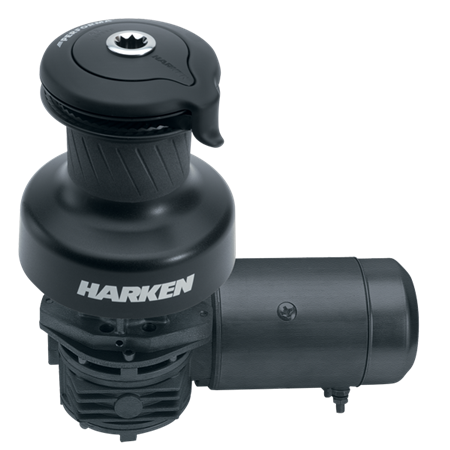

Harken #50 2 Speed Electric Self-Tailing Performa Winch

Item #

50.2STEP12H

Usually ships within 1-3 days
Available Power : Horizontal 12V

Product Description

Harken #50 2 Speed Electric Self-Tailing Performa Winch

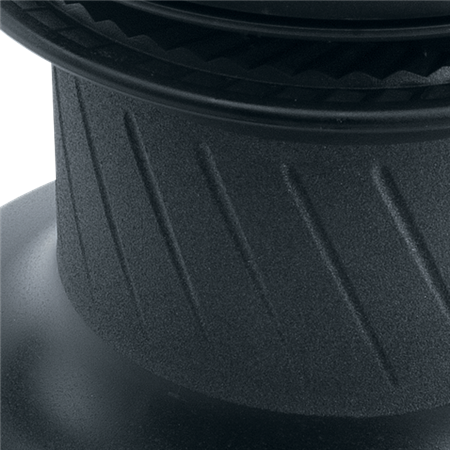

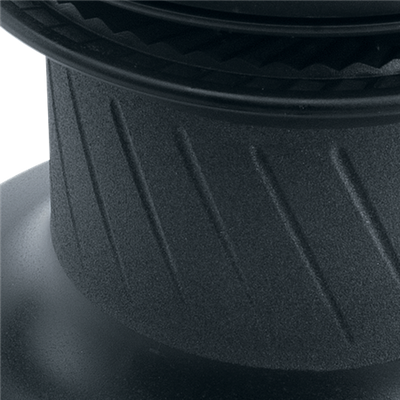

Harken Performa winches combine the high-efficiency of the Radial line with the sandblasted grip of Harken carbon-fiber racing winches for powerful hybrids. Optimized to handle the high-strength line used on sportboats and performance cruisers, Performa winches are a great solution for crew who don’t wish to invest in carbon winches or who need racing winches in smaller sizes.

Motors attach to central drive shaft and drive through winch gears for two-speed mechanical advantage.

Specifications:

  • Fasteners:  5/16" SH, 5/16" HH

  • Number of Fasteners: 5

  • Gear & Power Ratio:

  • Gear 1 - 2.40

  • Gear 2 - 10.90

  • Power Ratio 1 - 11.10

  • Power Ratio 2 - 50.40

  • Racing Disconnect Rod - B50PDR

  • Dimensions:

  • E - 2 3/4in (69mm)

  • F - 7 1/8in (181mm)

  • G - 9 5/8in (244mm)

  • Material: Aluminum

  • Configuration: Self-tailing

  • Speed: 2

  • Drum Diameter:  4 5/16"  (110mm)

  • Base Diameter: 7 11/16"  (195mm)

  • Height:  8 5/16"  (212mm)

  • Weight: 13.2lbs  (6kg)

  • Weight of Winch and Motor: 37.1 lbs (16.8kg)

  • Motor Weight:  23.9 lbs (10.8kg)

  • Line Entry Height:  3 13/16" (97mm)

  • Minimum Line Diameter:  5/16"  (8mm)

  • Maximum Line Diameter:  9/16" (14mm)

  • Fastener Circle: 5 7/8" (150mm)

  • Wire Gauges:

    Boat Size Under - 16.4ft (5m) - 2 AWG (32mm2)

    Boat Size - 16.4 (5m) to 32.8 (10m) - 0 AWG (50mm2)

    Boat Size - 32.8 (10m) to 49.2ft (15m) - 00AWG (70mm2)

    Boat Size - 49.2 (15m) to 65.6ft (20m) - 000AWG (95mm2)

    Each electric winch requires one control box, one circuit breaker, and two analog switches or one Digital System Switch. All new electric Radial and Performa electric winches are supplied with the appropriate dual-function control box. For replacement or retrofit control boxes, contact Harken.
