Product Description

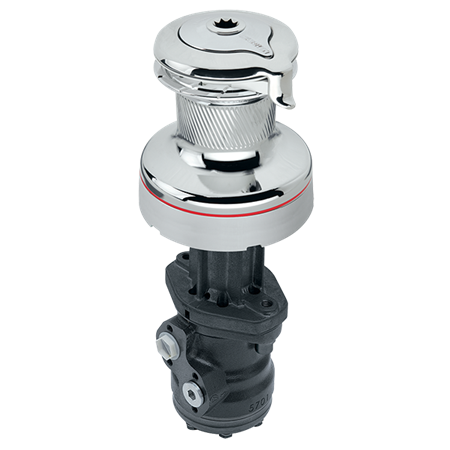

Harken #46 2 Speed Hydraulic Self-Tailing Radial Winch - All Chrome
Powered Radial winches allow crew to trim any size sail with the push of a button. Composite roller bearings reduce friction under load and don’t require lubrication. Load-carrying gears and pins are 17-4PH stainless steel for strength and durability.
Specifications:
Fasteners: 5/16" HH, 5/16" SH (M8 HH, M8 SH)
Number of Fasteners: 5
Gear & Power Ratio:
Gear 1 - 2.30
Gear 2 - 9.17
Power Ratio 1 - 11.70
Power Ratio 2 - 46.50
Dimensions:
Hydraulic (L): 9 1/4" (234mm)
Hydraulic (N): 5 1/8" (130mm)
Material: All-Chrome
Configuration: Self-tailing
Speed: 2
Drum Diameter: 3 7/8" (100mm)
Base Diameter: 7 1/4" (184mm)
Height: 7 15/16" (202mm)
Weight of Winch and Motor: 36.10 lbs (16.4kg)
Motor Weight: 16.6 lbs (7.5kg)
Line Entry Height: 3 9/16" (90mm)
Minimum Line Diameter: 5/16" (8mm)
Maximum Line Diameter: 9/16" (14mm)
Fastener Circle: 5 7/8" (150mm)
