Product Description

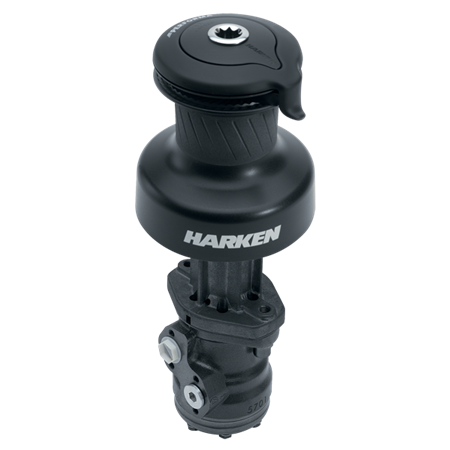

Harken #46 2 Speed Hydraulic Self-Tailing Performa Winch - Vertical
Harken Performa winches combine the high-efficiency of the Radial line with the sandblasted grip of Harken carbon-fiber racing winches for powerful hybrids. Optimized to handle the high-strength line used on sportboats and performance cruisers, Performa winches are a great solution for crew who don’t wish to invest in carbon winches or who need racing winches in smaller sizes.
Hydraulic Performa winches let you trim any size sail with the push of a button.
Specifications:
Fasteners: 5/16" HH, 5/16" SH
Number of Fasteners: 5
Gear & Power Ratio:
Gear 1 - 2.30
Gear 2 - 9.17
Power Ratio 1 - 11.70
Power Ratio 2 - 46.50
Racing Disconnect Rod - B46PDR
Dimensions:
Hydraulic (L): 9 1/4" (234mm)
Hydraulic (N): 5 1/8" (130mm)
Material: Aluminum
Configuration: Self-tailing
Speed: 2
Drum Diameter: 3 15/16" (100mm)
Base Diameter: 7 1/4" (184mm)
Height: 7 15/16" (202mm)
Weight: 11.5 lbs (5.2kg)
Weight of Winch and Motor: 28 lbs (12.7kg)
Motor Weight: 16.6 lbs (7.5kg)
Line Entry Height: 3 9/16" (90mm)
Minimum Line Diameter: 5/16" (8mm)
Maximum Line Diameter: 9/16" (14mm)
Fastener Circle: 5 7/8" (150mm)
