Product Description

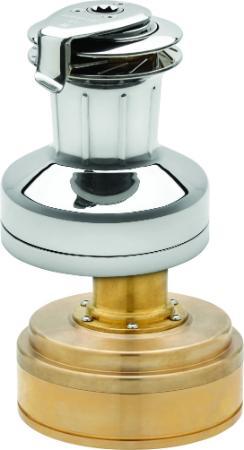

Andersen Electric Full Stainless Steel #46 Compact Variable Speed 12V Below Deck Winch
Features:
Compact in design integrating motor, gears and power controls into one unit
Impressive line speed and first rate maximum load
Easy to install and compatible with the ANDERSEN Modular Power System™.
Available in two versions: Above and Below deck
Winch mounted directly on the motor
Motor built without carbon brushes eliminates wear and tear.
30-50% less power consumption compared to conventional electric motors
Available in Full Stainless or Non Stainless versions
Specifications:
Drum Ø D - 3 1/2 in. (89 mm)
Base Ø B - 7 1/16 in. (180 mm)
Height H - 7 61/64 in. (202 mm)
Line Entry L - 3 9/16 in. (90 mm)
Line Size - 5/16 - 9/16 in. (8 - 14 mm)
Weight - 46.3 lb. (21 kg)
Max Deck Thickness K - 2 7/16 in. (62 mm)
Motor Depth J - 7 3/8 in. (188 mm)
Motor Ø S - 7 11/16 in. (195 mm)
