Product Description

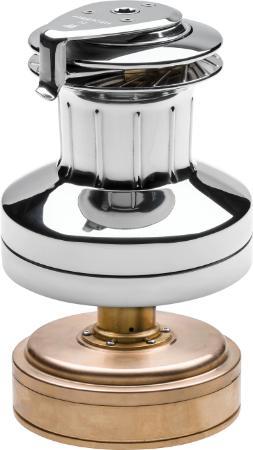

Andersen Electric Full Stainless Steel #72 Compact Variable Speed 24V Below Deck Winch
Features:
Compact in design integrating motor, gears and power controls into one unit
Impressive line speed and first rate maximum load
Easy to install and compatible with the ANDERSEN Modular Power System™.
Available in two versions: Above and Below deck
Winch mounted directly on the motor
Motor built without carbon brushes eliminates wear and tear.
30-50% less power consumption compared to conventional electric motors
Available in Full Stainless or Non Stainless versions
Specifications:
Drum Ø D - 5 1/2 in. (140 mm)
Base Ø B - 11 in. (280 mm)
Height H - 11 9/64 in. (283 mm)
Line Entry L - 5 1/8 in. (130 mm)
Line Size - 3/8 - 11/16 in. (10 - 18 mm)
Weight - 99.2 lb. (45 kg)
Max Deck Thickness K - 2 1/16 in. (52 mm)
Motor Depth J - 7 in. (178 mm)
Motor Ø S - 9 7/8 in. (250 mm)
