Product Description

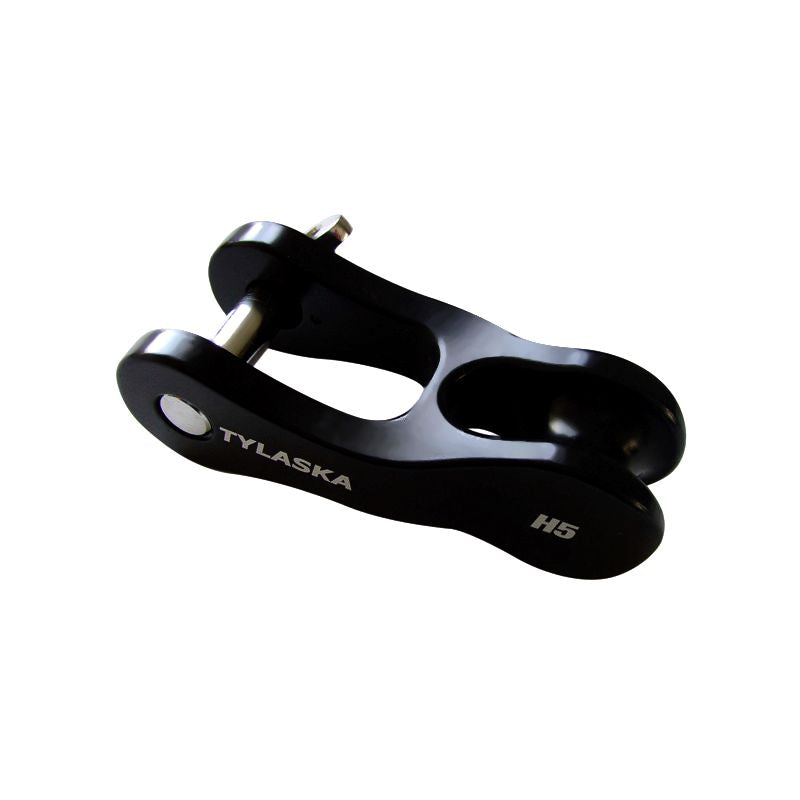

Tylaska 2.89" H5 Aluminum Halyard Shackle
Tylaska’s halyard shackles are machined from aerospace grade aluminum plate and hard-coat anodized to military specifications for superior strength and durability. A captive 17-4PH stainless steel pin makes for trouble-free operation. The machined thimble surface is suitable for permanently spliced fixed halyards.
Specifications
Shackle Type - H5
Safe Working Load(lb.) - 2,500 (1,130kg)
Breaking Strength(lb.) - 5,000 (2,270kg)
Line Size(in.) - 5/16"-7/16" (8mm-11mm)
Weight(oz.) - 1.8 (52g)

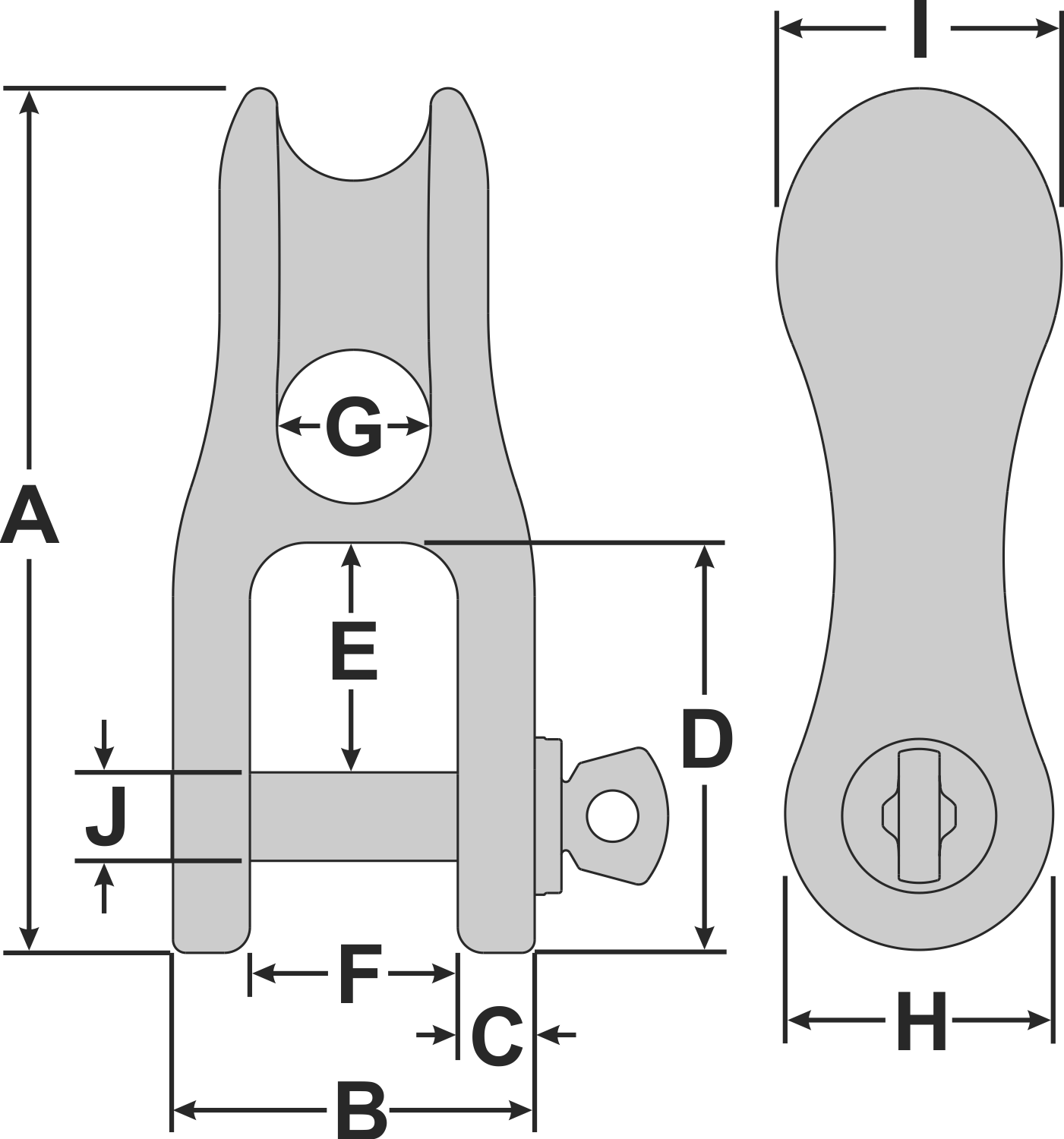

Dimensions
A(in.) - 2.89" (73.3mm)
B(in.) - 1.07" (27.3mm)
C(in.) - 0.22" (5.6mm)
D(in.) - 1.44" (36.5mm)
E(in.) - 0.87" (22mm)
F(in.) - 0.63" (16.1mm)
G(in.) - 0.50" (12.6mm)
H(in.) - 0.88" (22.3mm)
I(in.) - 0.95" (24.1mm)
J(in.) - 0.26" (6.6mm)
