Product Description

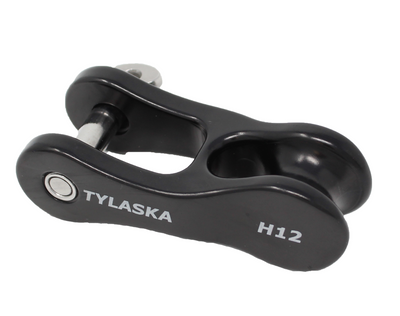

Tylaska 3.74" H12 Aluminum Halyard Shackle
Specifications
Shackle Type - H12
Safe Working Load(lb.) - 6,000 (2,720kg)
Breaking Strength(lb.) - 12,000 (5,440kg)
Line Size(in.) - 7/16"-9/16" (11mm-14mm)
Weight(oz.) - 4.7 (132g)

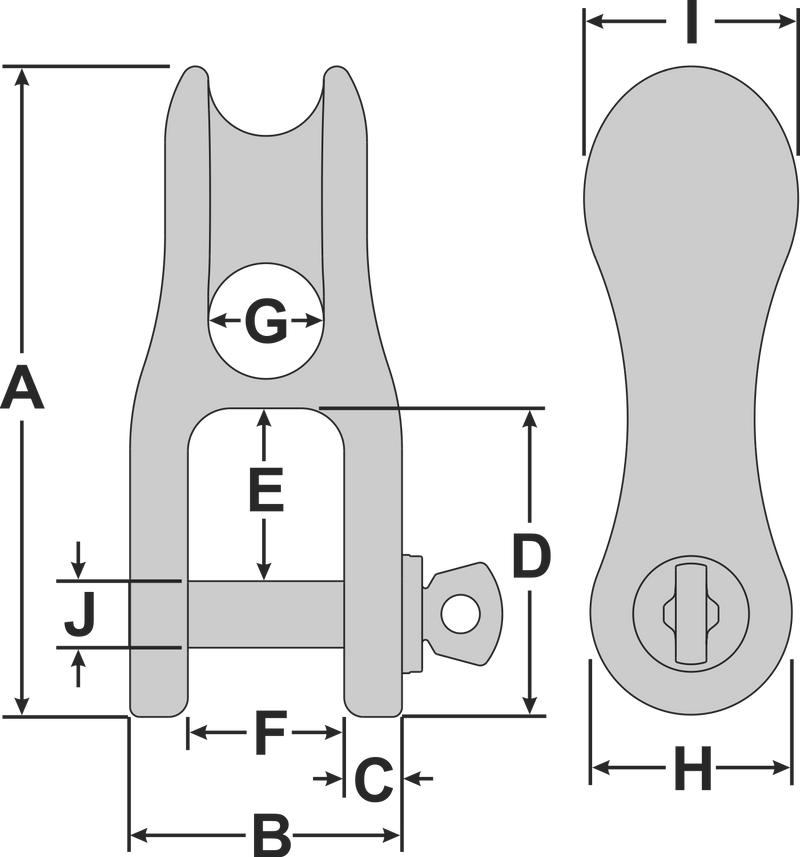

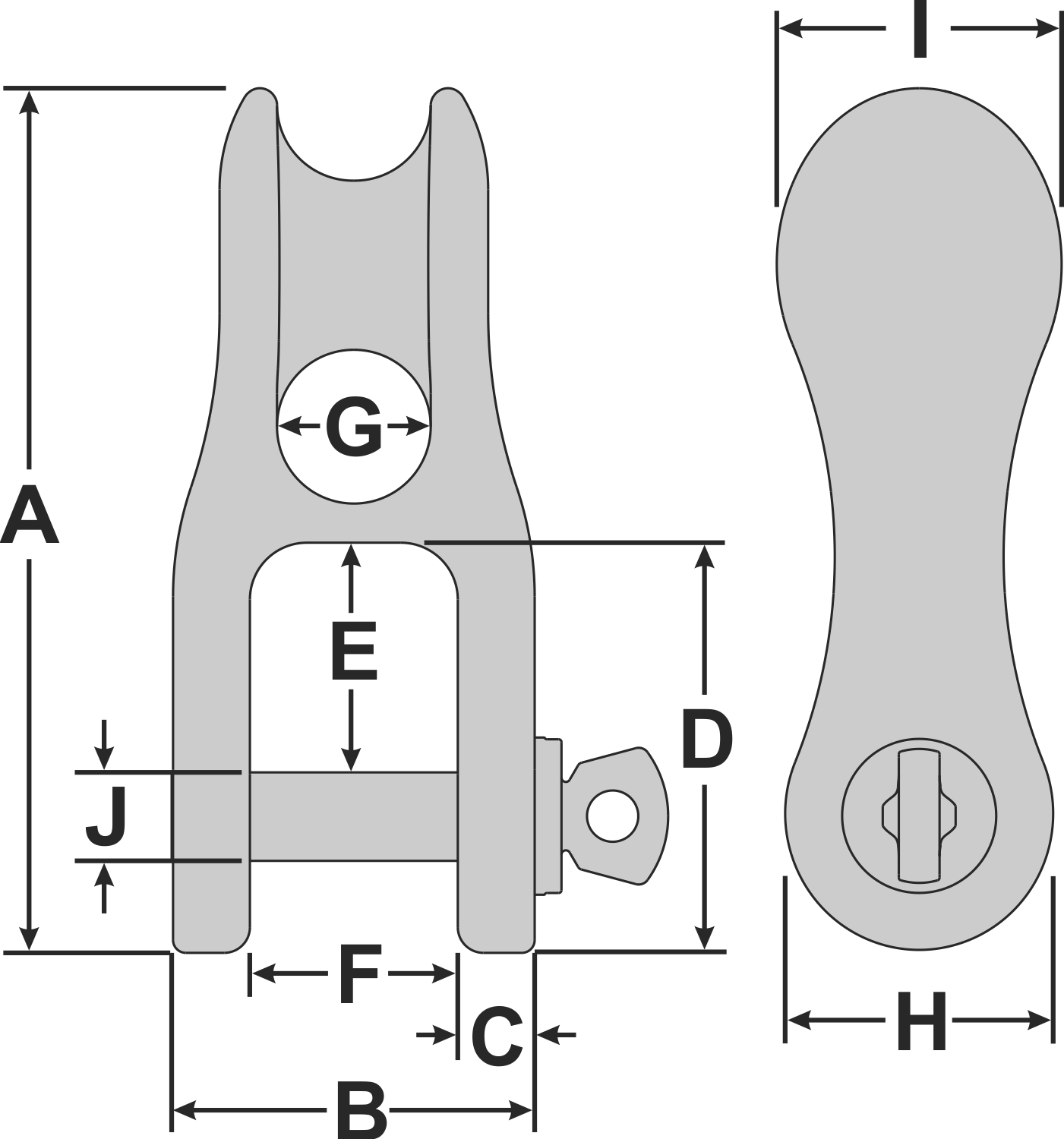

Dimensions
A(in.) - 3.74" (95mm)
B(in.) - 1.50" (38.1mm)
C(in.) - 0.31" (7.9mm)
D(in.) - 1.90" (48.3mm)
E(in.) - 1.14" (29mm)
F(in.) - 0.88" (22.4mm)
G(in.) - 0.63" (15.9mm)
H(in.) - 1.12" (28.4mm)
I(in.) - 1.21" (30.7mm)
J(in.) - 0.38" (9.7mm)
