Product Description

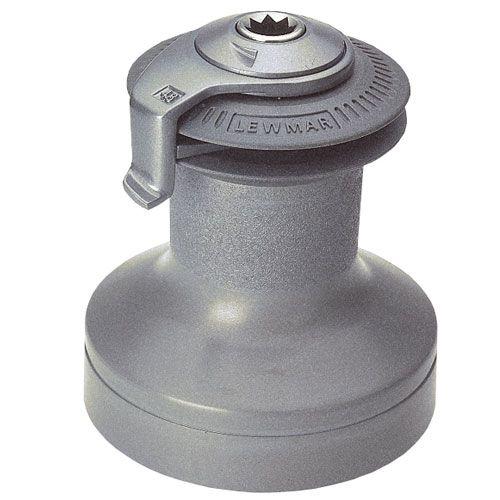

Lewmar 48/STR Two Speed Racing Self-Tailing Winch
Specifications
Finish - Alloy
Gear Ratio 1st/2nd/3rd - 2.6:1/9:1
Power Ratio 1st/2nd/3rd - 13.9:1/48.6:1
Weight (lb) - 13
Dimensions
Drum Diameter D (in) - 3 11/16
Base Diameter B (in) - 7 1/8
Height H (in) - 8 3/16
Line Entry L (in) - 3 3/8
Line Size (in) - 5/16-9/16
Mounting Instructions
5 x M8 (5/16 in) c'sk head screws on 136mm (5 11/32in) PCD. Lewmar recommend that the rope enters onto the drum at an angle of 5º to 10º to the base axis of the winch. To achieve this angle it may be necessary to use a base wedge when installing the winch. This product is Made to Order.
