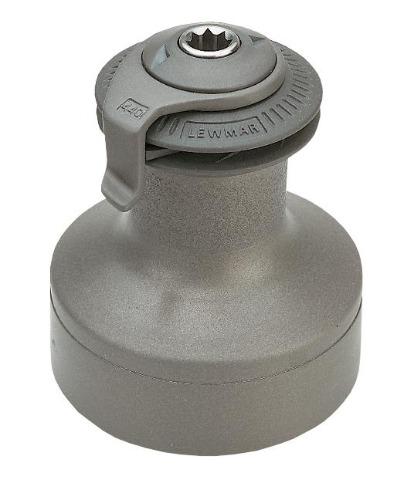

Lewmar 40/STR Two Speed Racing Self-Tailing Winch

Item #

49040040

Usually ships within 1-3 days

Product Description

Lewmar 40/STR Two Speed Racing Self-Tailing Winch

Specifications

  • Finish - Alloy

  • Gear Ratio 1st/2nd/3rd - 1.9:1/5.8:1

  • Power Ratio 1st/2nd/3rd - 13.2:1/40.2:1

  • Weight (lb) - 7.5

    Dimensions

  • Drum Diameter D (in) - 2 15/16

  • Base Diameter B (in) - 5 13/16

  • Height H (in) - 6 13/16

  • Line Entry L (in) - 3 1/8

  • Line Size (in) - 5/16-1/2

    Mounting Instructions

    5 x M6 (1/4 in) c'sk head screws on 121mm (4 3/4 in) PCD. Lewmar recommend that the rope enters onto the drum at an angle of 5º to 10º to the base axis of the winch. To achieve this angle it may be necessary to use a base wedge when installing the winch. This product is Made to Order.
