Product Description

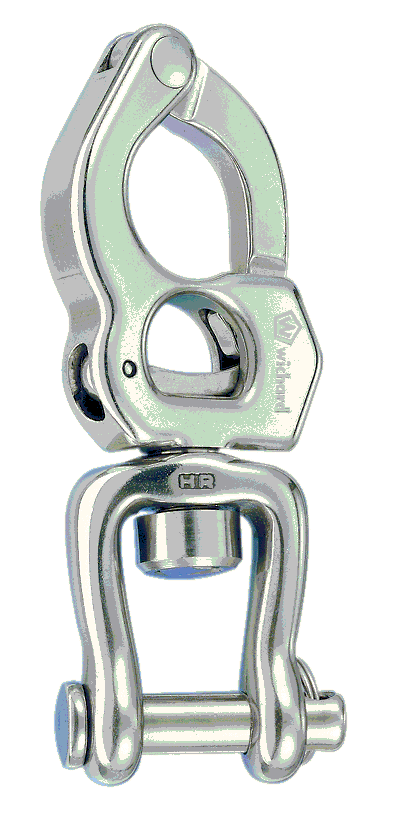

Wichard 5 5/16" Trigger Snap Shackle w/ Swivel Shackle
Features
Weight - 0.86 Lbs (309 g)
Length - 5 5/16" (135mm)
Working Load- 9171 Lbs (4160 kg)
Breaking Load- 17630 Lbs (8000 kg)
A - 1 1/16" (27mm)
B - 3/4" (19mm)
C - 45/64" (18mm)
D - 7/16" (11mm)
Description
HR forged trigger snap shackle with swivel shackle
The opening is made by hand (low load) or by using a release fid
Allows to attach a non spliced sheet.
Free rotation of the snap shackle thanks to the swivel
Outstanding working and breaking loads
Applications
Trigger snap shackle requiring no splicing sheet
Many fastening applications: furling systems, deck fitting…
Material
HR stainless steel 17.4 PH
