Product Description

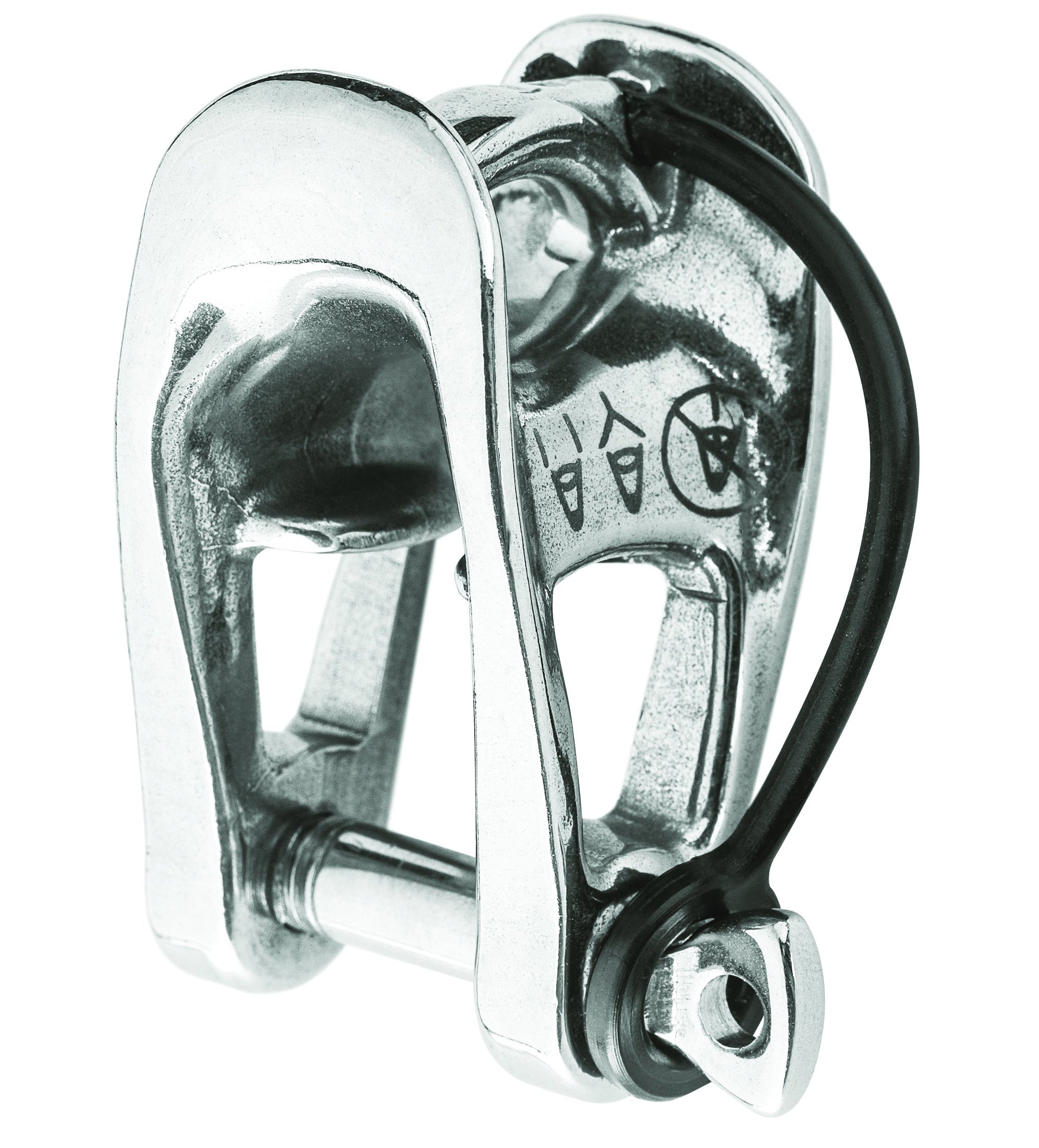

Wichard 5/16" MXEvo Halyard Shackle for Max 3/8" Rope
Features:
Weight: 3.84 oz. (109 g)
Length: 2 2 7/16" (62 mm)
Width: 1 27/64" (36 mm)
Working load: 3880 lbs. (1760 Kg)
Breaking load: 9040 lbs. (4100 Kg)
A: 45/64" (18 mm)
B: 45/64" (18 mm)
C: 1 27/64" (9 mm)
Diameter: 5/16" (8 mm)
Description
Dedicated to heavy load applications
Impressive working and breaking load limits
Captive pin on the standard version
Becket function to make tackles
Rope kept on track thanks to the fins
Optimized weight and dimensions
Easy opening – Easy rope installation
Two versions existing in three sizes
Limited rope wear thanks to the track conception
Monobloc item (without mechanical part) for a better reliability
For max rope size 10 mm
Applications
2:1 halyard purchase: mainsail, spinnaker, gennaker
Flying sail furler terminals: tensioning at the top or from the bottom
Material:
Grade 316L stainless steel
