Product Description

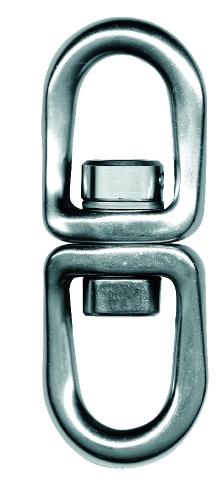

Tylaska 2 13/16" T8 Standard/Standard Bail Swivel
Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications
Shackle Type - T8 Std/Std Bail Swivel
Safe Working Load(lb.) - 4,000 (1,810kg)
Breaking Strength(lb.) - 8,000 (3,630kg)
Weight(oz.) - 3.0

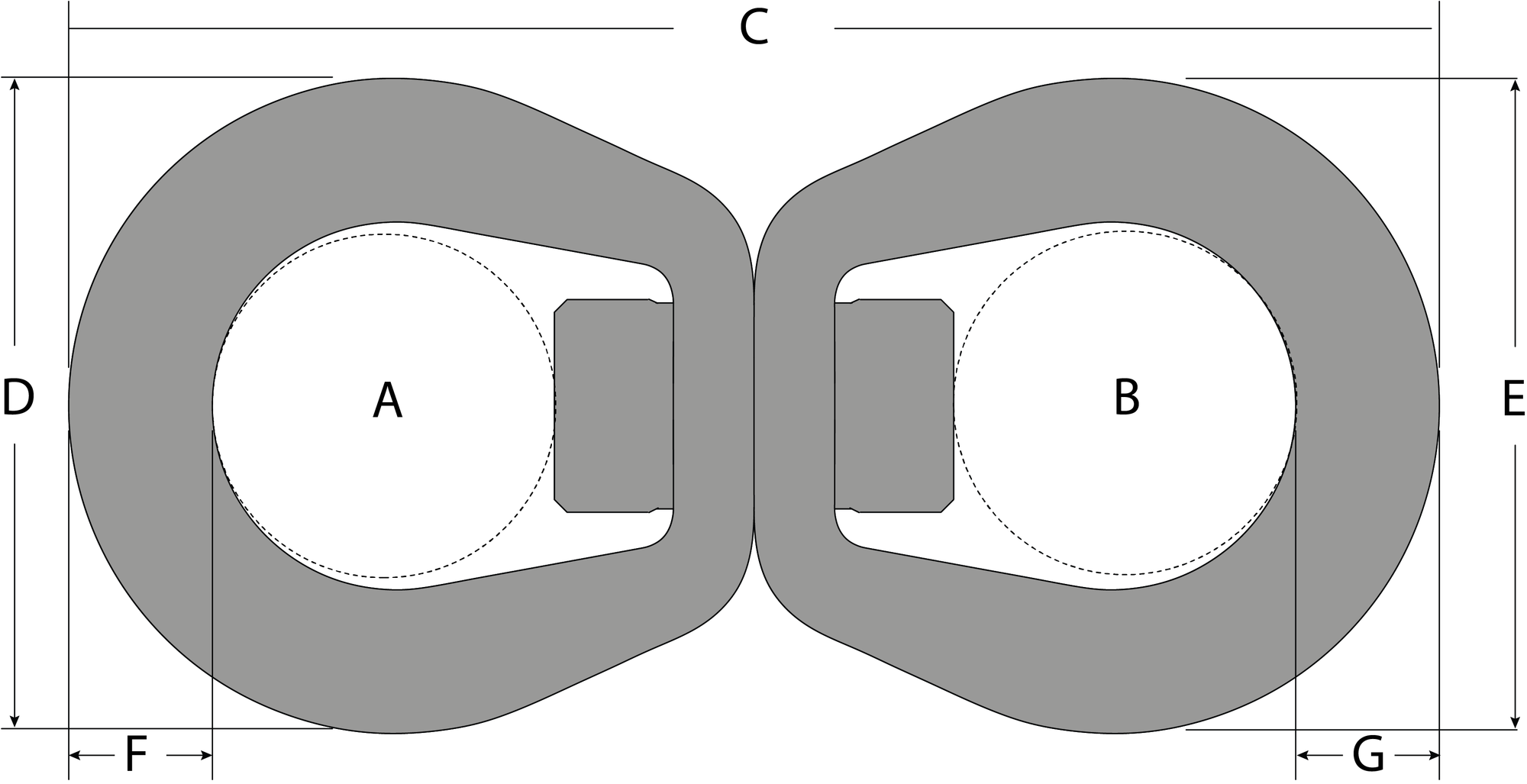

Dimensions
A(in.) - 0.58" (14.7mm)
B(in.) - 0.58" (14.7mm)
C(in.) - 2.84" (72.1mm)
D(in.) - 1.19" (30.2mm)
E(in.) - 1.19" (30.2mm)
F(in.) - 0.28" (7.1mm)
G(in.) - 0.28" (7.1mm)
