Tylaska RB10 Two-Piece Rope Bushing 30-50mm Deck Thickness

Item #

TY2810-50

$52.93 $70.58 You Save 25% ($17.65)

Usually ships within 1-3 days

Description

Product Description

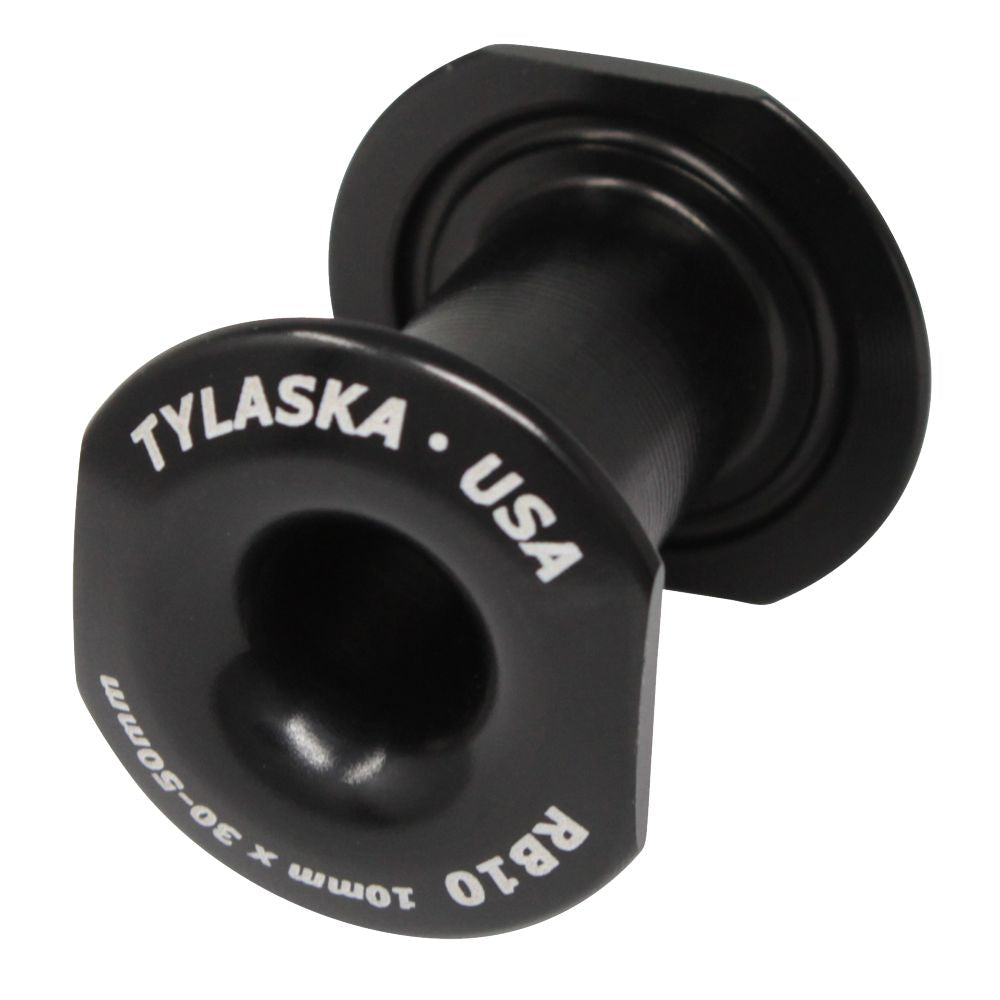

Tylaska RB10 Two-Piece Rope Bushing 30-50mm Deck Thickness

Tylaska’s new line of Rope Bushings provide a durable, high quality, and low friction solution for passing lines and sheets through decks, bulkheads, and other surfaces. Just like Tylaska’s popular line of low friction rings, Tylaska Rope Bushings are precision machined from 6061 aluminum and hard coat anodized to military type III specifications, maximizing durability and wear resistance. A large smooth radius at the mouth of the bushing allows for a tight bend radius in the rope passing through the bushing. Available in a single piece cut-to-length variation as well as a threaded two-piece assembly that screws together.

Specifications:

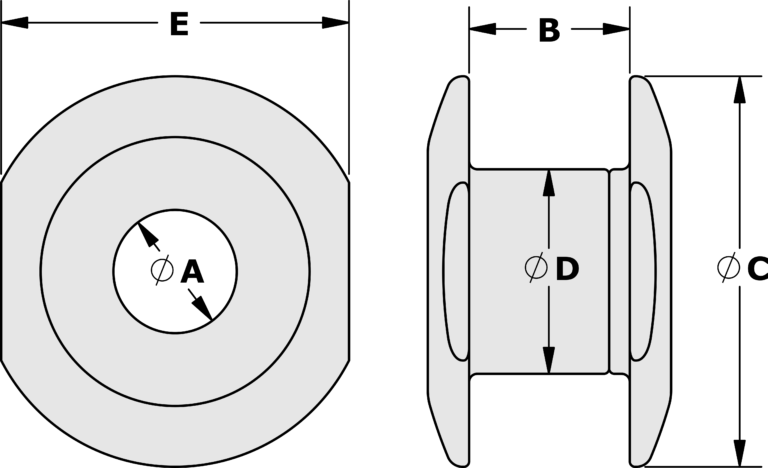

Part No.	A in. (mm)	B in. (mm)	C in. (mm)	D in. (mm)	E in. (mm)	Weight oz. (g)
TY2810-12	0.39" (10mm)	0.39"-0.47" (10-12mm)	1.25" (32mm)	0.63" (16mm)	1.10" (28mm)	0.39oz (11g)
TY2810-16	0.39" (10mm)	0.47"-0.63" (12-16mm)	1.25" (32mm)	0.63" (16mm)	1.10" (28mm)	0.41oz (11.6g)
TY2810-22	0.39" (10mm)	0.63"-0.87" (16-22mm)	1.25" (32mm)	0.63" (16mm)	1.10" (28mm)	0.45oz (12.8g)
TY2810-30	0.39" (10mm)	0.87"-1.18" (22-30mm)	1.25" (32mm)	0.63" (16mm)	1.10" (28mm)	0.52oz (14.7g)
TY2810-50	0.39" (10mm)	1.18"-1.97" (30-50mm)	1.25" (32mm)	0.63" (16mm)	1.10" (28mm)	0.60oz (17g)
