Product Description

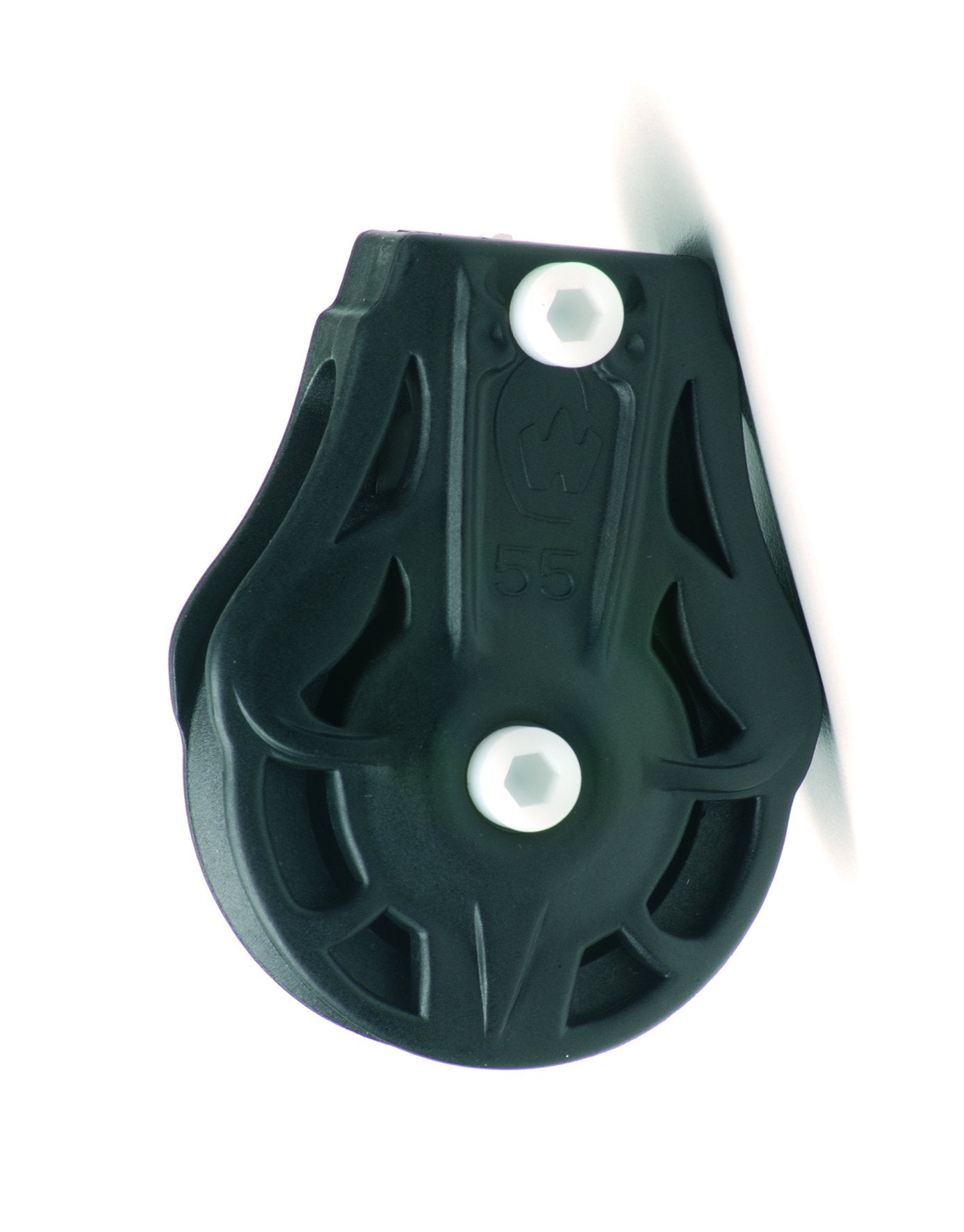

Wichard Single 1 49/64" (45mm) Cheek Block
Features
Weight - 2.5 oz. (70 g)
Sheave Diameter - 1 49/64" (45mm)
Shackle Diameter - 13/64" (5mm)
Length - 2 9/16" (65mm)
Width - 1 15/16" (49mm)
Thickness - 29/32" (23mm)
Working Load - 882 Lbs (400 kg)
Breaking Load - 1980 Lbs (900 kg)
Rope Size - 13/32" (10mm)
Forged Shackle - 13/64" (5mm)
Applications
Cheek block applications for genoa sheets
Material
Grade 316L stainless steel head configuration
Grade 316L stainless steel load straps
Polycarbonate flanges
Composite saddle for cam models
Composite sheave
