Product Description

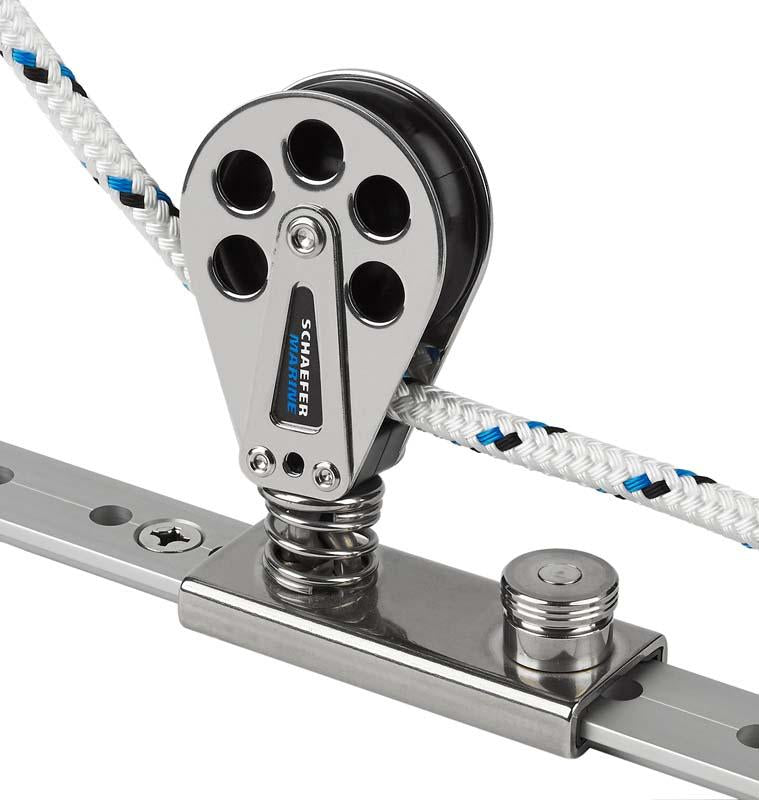

Schaefer Spr. Loaded/Lined Slide/S.S.
705-92 Stand up spring block for 1-1/4" T-Track. Delrin(tm) sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.
Specifications:
Track Size: 1 1/4" x 3/16" (32 mm x 5 mm)
Boat Size Up To LOA, Displ., Sail Area: 33', 12000 lbs.,520 sq. ft. (10 m, 5455 kg, 48 m2),
Sheave Dia.: 2 3/8 in. (60 mm)
Max Line: 1/2 in. (12 mm)
Length: 4 in. (102 mm)
Width: 1 9/16 in. (39 mm)
Height: 4 15/16 in. (126 mm)
Bearing Height: 2 3/8 in. (67 mm)
SWL: 2250 lbs. (1020 kg)
Weight: 14 oz. (397 g)
