Product Description

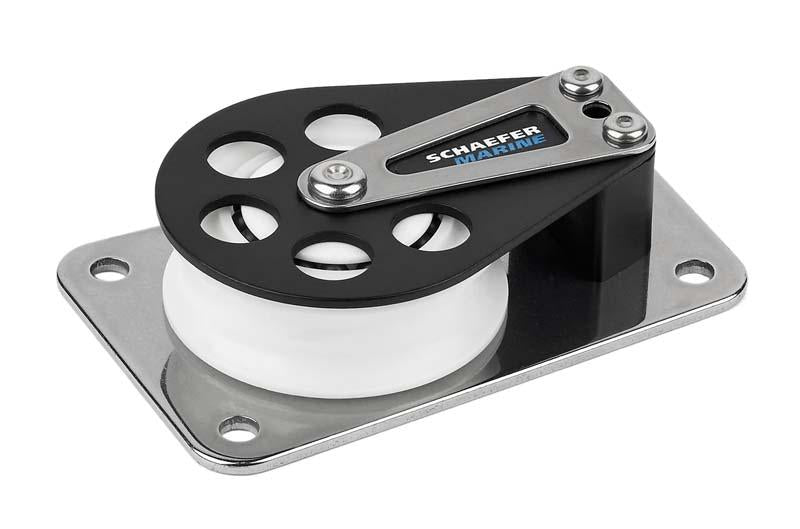

Schaefer Flat Base Delrin Single Cheek Block
7 Series Cheek Block with anodized Aluminum cheek and ball bearing sheave. Delrin(tm) ball bearing sheave provides low-friction and high safe working load. Stainless steel base distributes loads to a large surface area.
Specifications:
Sheave Dia.: 2 3/8 in. (60 mm)
Length: 4 3/8 in. (111 mm)
Width: 2 3/4 in. (70 mm)
Height: 1 in. (25 mm)
Fasteners: (4) 1/4 in. RH (6 mm)
C/C: 3 5/8 in. (92 mm)
SWL: 1700 lbs. (771 kg)
Weight Alum: 9.6 oz (272 g)
Max Line: 1/2 in. (13 mm)
