Schaefer Utility Block/Mast Collar Delrin

Item #

705-20

Usually ships within 1-3 days

Product Description

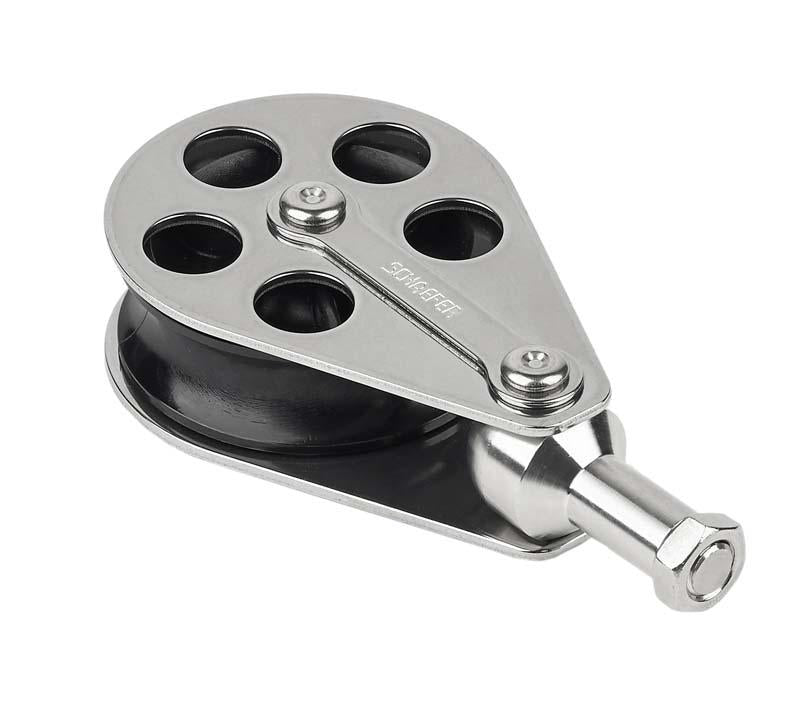

Schaefer Utility Block/Mast Collar Delrin

705-20 fits Isomat mast collar with a pin diameter of .510". Stainless steel cheeks and Delrin(tm) sheave ensure smooth operation and high safe working load.

Specifications:

  • Sheave Dia.: 2 3/8 in. (60 mm)

  • Thickness: 1 in. (25 mm)

  • Pin Dia: .510 hole

  • Length: 3 23/32 in. (94 mm)

  • Width: 2 1/2 in. (64 mm)

  • SWL: 2250 lbs. (1020 kg)

  • Weight: 1 lbs. 3 oz. (539 g)

  • Max Line: 1/2 in. (13 mm)
