Product Description

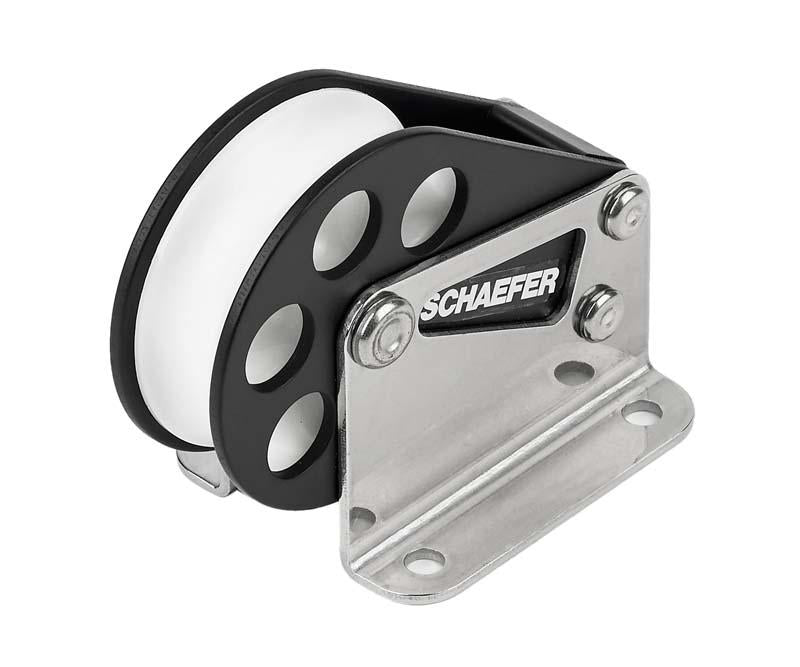

Schaefer Halyard Lift Turning Block w/ Delrin
504-60 Halyard/Control block. Delrin(tm) sheave ensures smooth operation and high strength. Anodized aluminum cheek and stainless steel base provide a solid platform. Block is mounted to bisect load angle for maximum strength.
Specifications:
Sheave Dia.: 2 in. (51 mm)
Jaw Opening: 2 9/32 in. (58 mm)
Pin. Dia.: 1 5/16 (49 mm)
C/C Length: 1 21/32 (42 mm)
Width: 1 5/16 in. (49 mm)
Length: 2 9/32 in. (58 mm)
SWL: 1750 lbs. (795 kg)
Weight: 5.5 oz. (156 g)
Max Line: 7/16 in. (11 mm)
