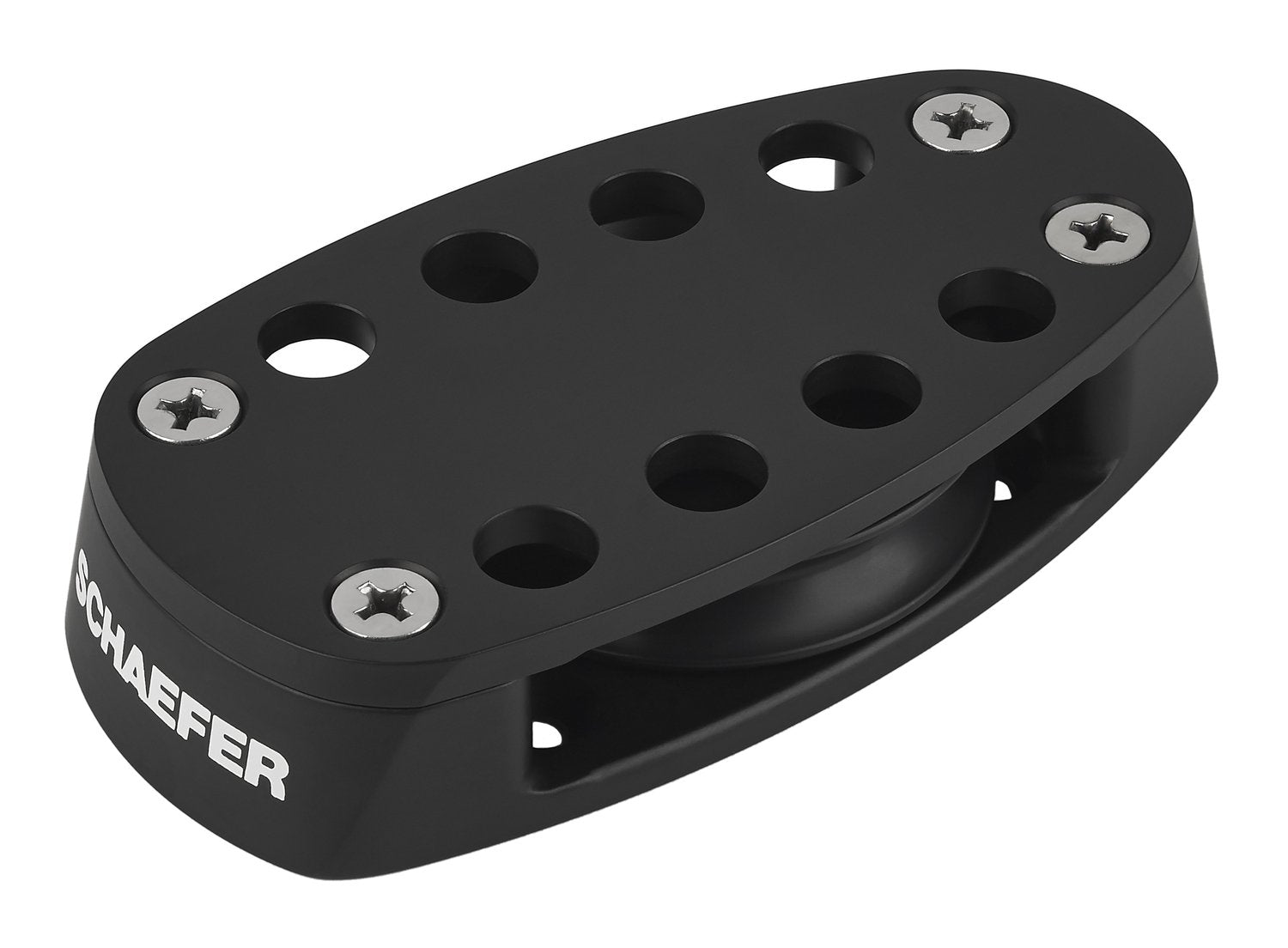

Schaefer Single Foot Block - ALUM - Max Line 3/4" (19 mm)

Item #

37-53

Usually ships within 1-3 days

Product Description

Schaefer Single Foot Block - ALUM - Max Line 3/4" (19 mm)

Aluminum Footblock with Aluminum Sheave running on Nomex/Teflon(tm) Bearing and Torlon(tm) Ball Bearings. Machined Aluminum construction. Boats to 45' - Safe Working Load 7500 lbs. Easy Installation with "Strip from the top" design.

Specifications:

  • Boat Size Up To LOA, Displ., Sail Area: 45' , 30000 lbs., 900 sq. ft. (13.6 m, 13636 kg, 83.6 m2)

  • Sheave Dia.: 4 in. (102 mm)

  • Max Line: 3/4 in. (19 mm)

  • Length: 8 3/4 in. (222 mm)

  • Width: 4 5/32 in. (106 mm)

  • Height: 1 21/32 in. (42 mm)

  • Fasteners: (5) 3/8 in. FH (10 mm)

  • SWL: 7500 lbs. (3409 kg)

  • Weight Alum.: 3 lbs. 6 oz. (1.52 kg)
