Product Description

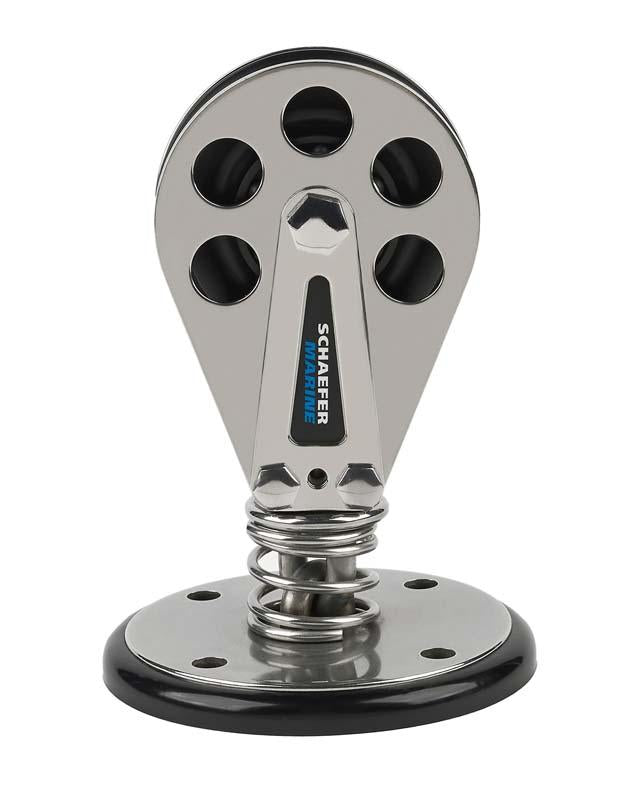

Schaefer UC Stand-Up Swivel Max Line 5/8" (16 mm)
10 Series Stand Up Block with Stainless Steel cheeks and Aluminum "universal circuit" ball bearing sheave. Aluminum sheave run on Delrin(tm) ball bearings for a very strong yet low-friction sheave. Stainless Steel base provides high safe working load when combined with optional backing plate part number 97-50. Bolted construction allows for easy maintenance.
Specifications:
Sheave Dia.: 3 1/4 in. (83 mm)
Max Line: 5/8 in. (16 mm)
Dia. includes urethane base: 4 1/2 in. (114 mm)
Height: 6 3/32 in. (155 mm)
H2: 3 1/8 in. (79 mm)
Fastener Size: (4), 5/16 in. RH (8 mm)
C/C: 2 5/16 in. (59 mm)
SWL: 3750 lbs. (1700 kg)
Weight Stain.: 2 lbs. 6.5 oz. (1.09 kg)
