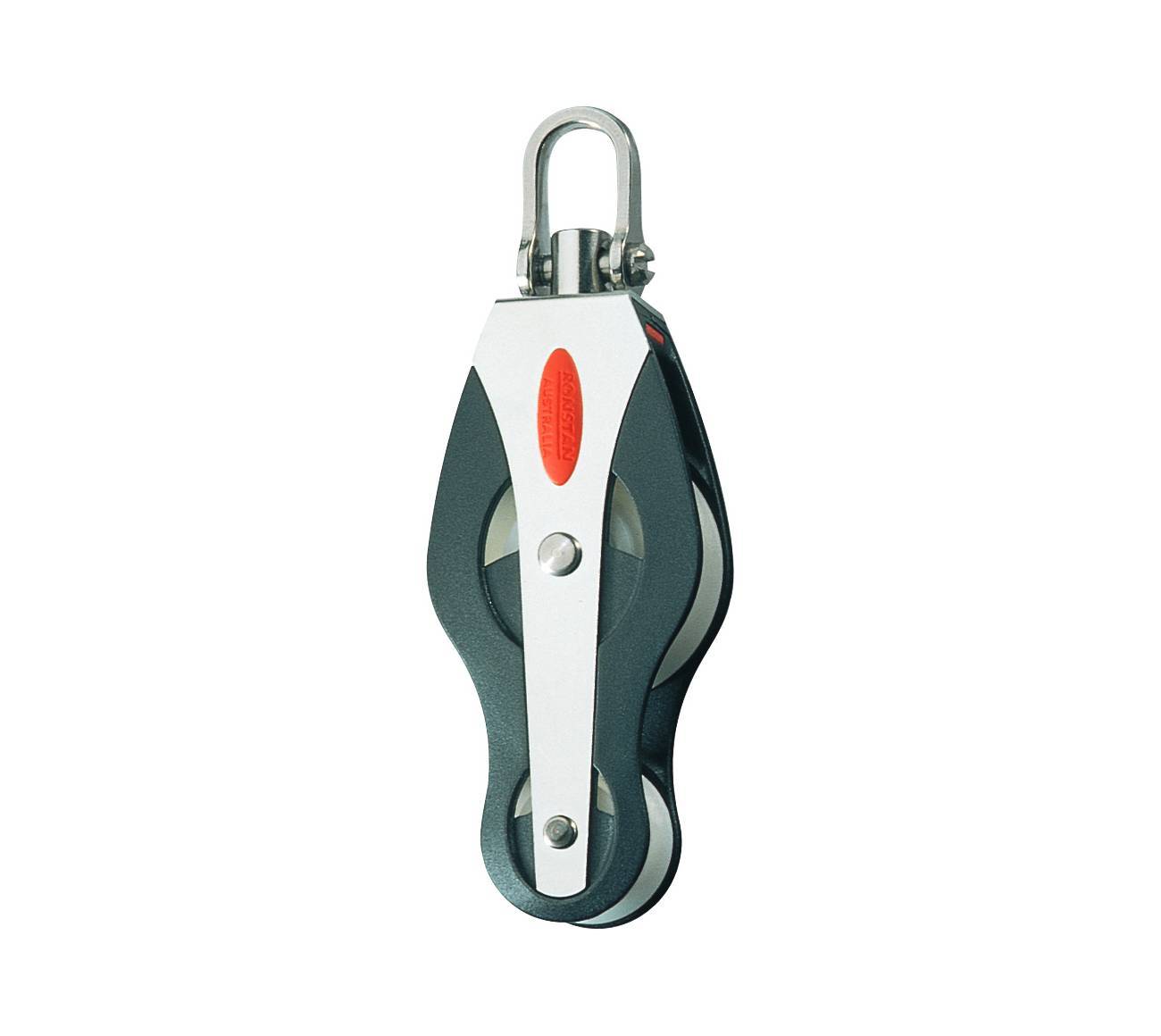

Ronstan Series 40 All Purpose Universal Head Fiddle Block

Item #

RF41500

Usually ships within 1-3 days

Product Description

Ronstan Series 40 All Purpose Universal Head Fiddle Block

Features

  • Exceptionally high working loads

  • Low maintenance, long service life

  • Self-lubricating sheave

  • Captive Lock™ universal head

  • Slotted pin shackle eliminates fouled lines

    Sheave Ø - 1 9/16 + 15/16 in.

    Max. Rope Ø - 5/16 in.

    Max. Cable Ø - in

    Pin Ø - 3/16 in.

    M.W.L. - 880 lb.

    B. L. - 2200 lb.

    Weight - 3.2 oz.

    Product Information

    All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.

    Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required

    Applications

  • Mainsheet

  • Halyard

  • Vang

  • Spinnaker control lines on off-the-beach catamarans, one design classes and sports boats up to 8m (26ft)

  • Ideal for fine-tune mainsheet tackles, cunninghams, backstays and other control line purchase systems.

    Materials

  • U.V. stabilized Acetal sheaves

  • Impact and U.V. resistant, fiber reinforced Nylon cheeks

  • Grade 316 stainless steel bearing race

  • Grade 316 stainless steel load strap and head fitting

  • Impact and UV resistant, fiber reinforced Nylon cheeks
