Product Description

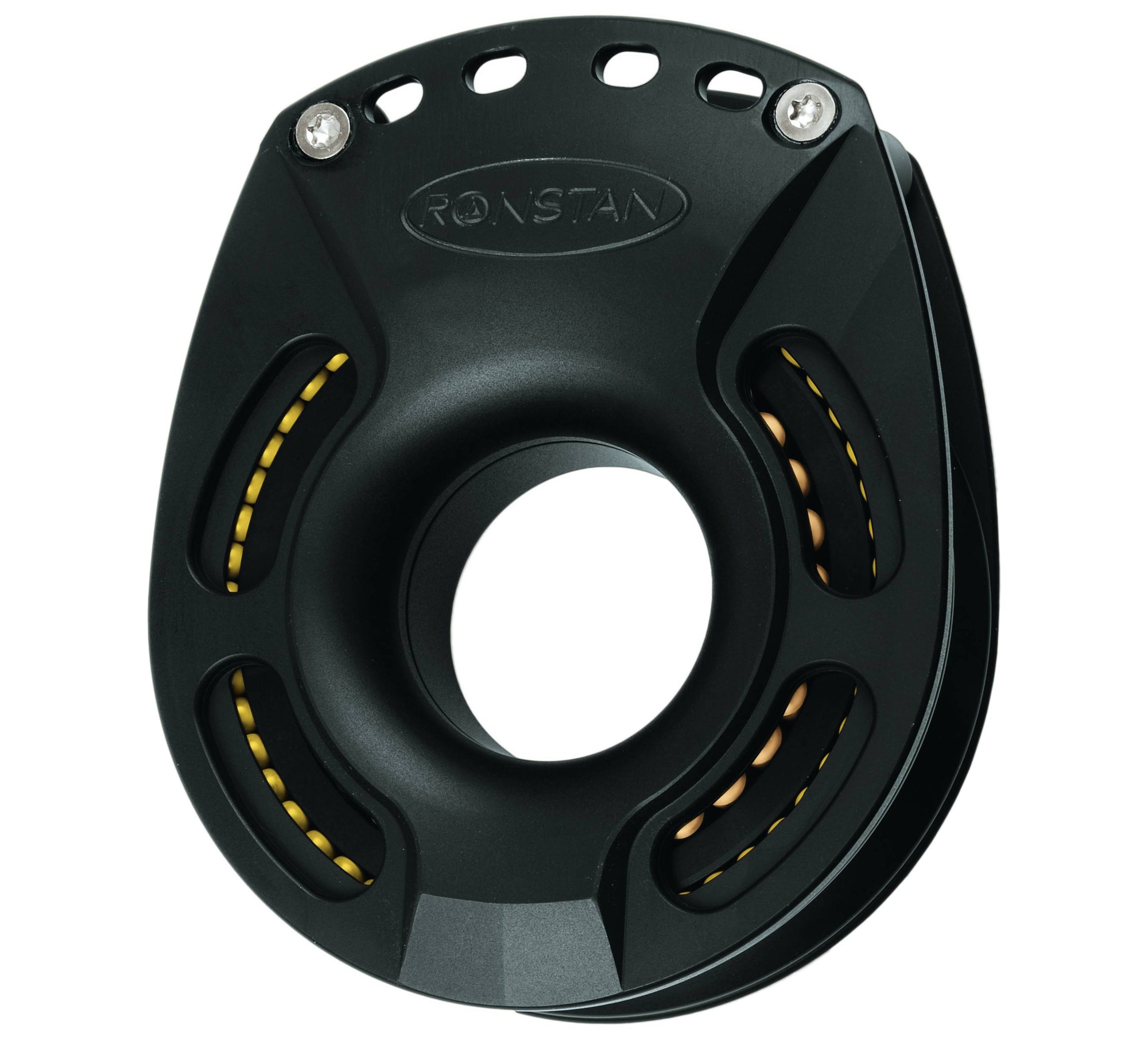

Ronstan Series 100 Orbit Blocks, Lashing Single
Features
The highest strength-to-weight ratio
Minimal friction loss, especially when working at high loads
Totally reliable and trouble free performance
Simplicity of design and construction to facilitate maintenance and servicing
Elegant, functional styling and finish.
Sheave Ø - 4 in.
Max. Rope Ø - 5/8 in.
Max. Cable Ø - -
Pin Ø - -
M.W.L. - 12125 lb.
B.L. - 30314 lb.
Weight - 15.9 oz.
Product Information

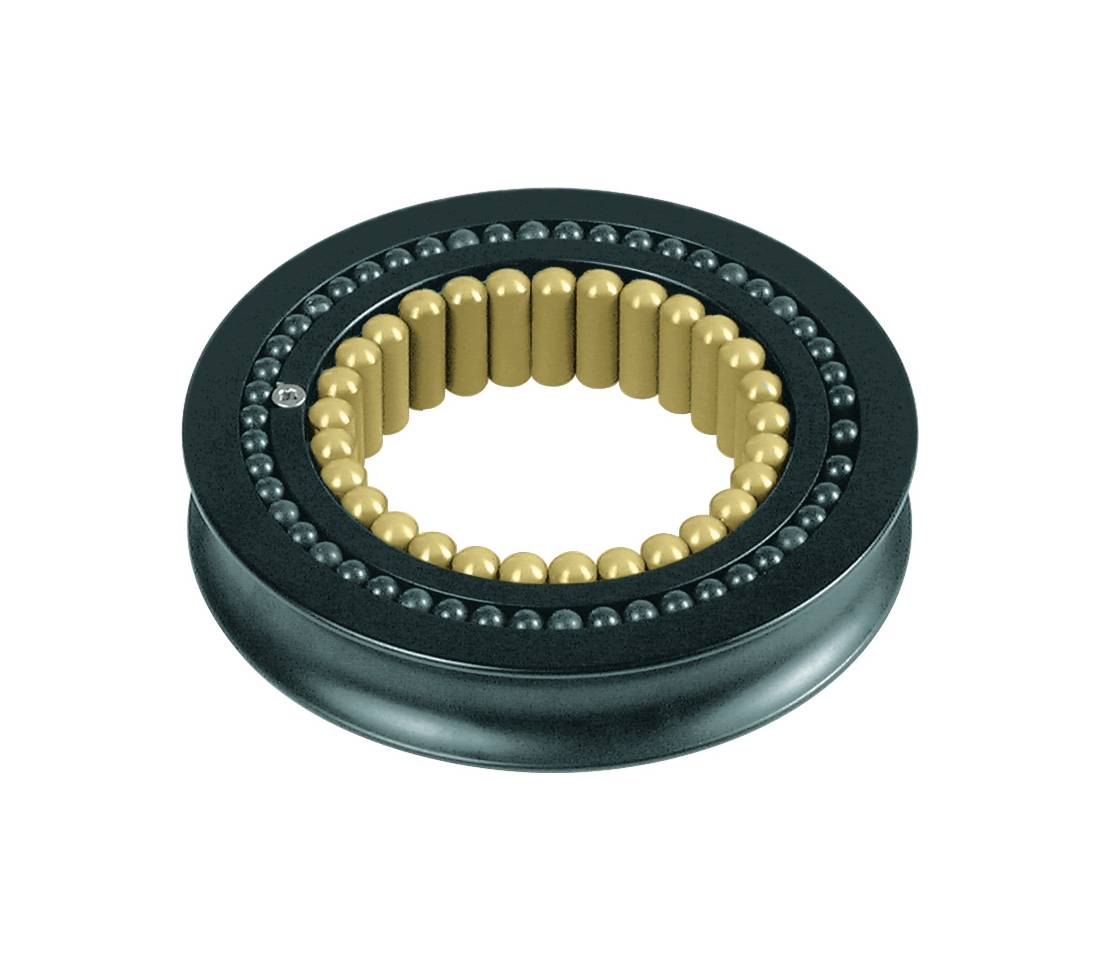

Orbit Blocks™ are a no-compromise product range developed to meet the demands and expectations of the very dedicated and increasingly professional racing sailor. Side cheeks incorporating head structure and hub are precision machined as a single part from solid alloy, leaving material only where it contributes to the load carrying capacity of the block and eliminating the need for additional fasteners. The Orbit sheave has captive ball bearings for side thrust loads, eliminating the need for side retainer plates. This reduces weight and allows for a wider bearing surface that can accommodate longer Torlon® needles – achieving a substantially higher strength-to-weight ratio.

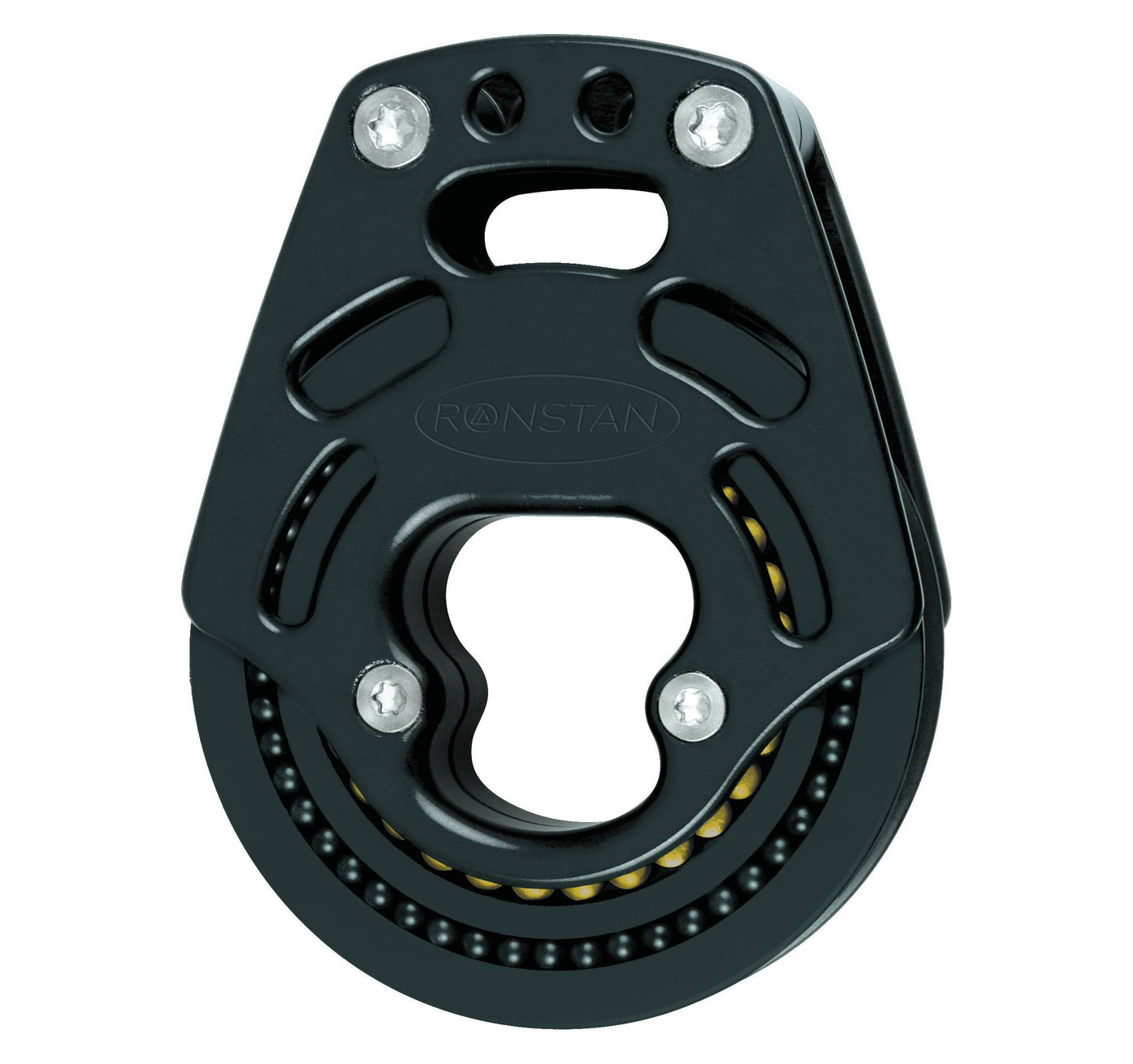

Due to their direct attachment capability Lashing blocks are extremely versatile. They can accept multiple lashing lines at the head and the hollow hub can be utilised as a becket take-off. Unlike others on the market, these hollow hubs feature large radii to minimise rope fatigue.
Materials
Fully machined Alloy cheek plates
Alloy sheaves with captive ball races
Torlon® needle rollers
Acetal guide rollers
Torlon ball bearings, series 100, 125, 150
