Product Description

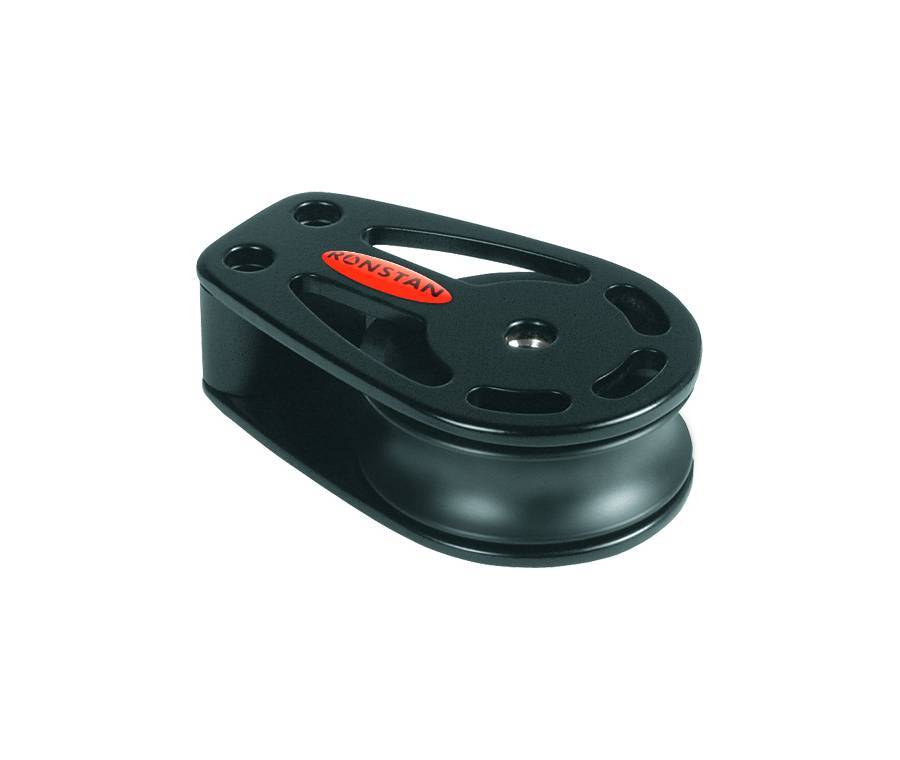

Ronstan Series 50 Single Cheek Block
Features
Exceptionally high working loads
Low maintenance, long service life
Self-lubricating sheave
Sheave Ø - 2 in.
Max. Rope Ø - 1/2 in.
Max. Cable Ø - in
Pin Ø - in.
M.W.L. - 1100 lb.
B. L. - 2200 lb.
Weight - 3.0 oz.
Product Information
All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.
Can be mounted on masts and booms using the curved surface adapter. Can be stacked to create a double version, but no more than 60% of the rated working load should be applied to the upper sheave.
Applications
Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10m (33ft)
Materials
U.V. stabilized Acetal sheaves
Impact and U.V. resistant, fiber reinforced Nylon cheeks
Grade 316 stainless steel bearing race
Alloy cheeks
