Ronstan 60mm Single Fiddle w/ Cleat & Snap Shackle Head Core Block

Item #

RF64523

Usually ships within 1-3 days

Product Description

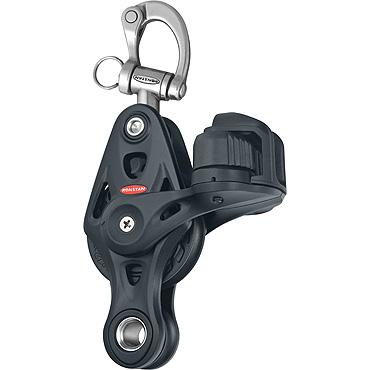

Ronstan 60mm Single Fiddle w/ Cleat & Snap Shackle Head Core Block

Features

  • Class leading performance and sleek, contemporary styling

  • Excellent dynamic and high static load performance

  • Less than half the friction of the nearest competitor

  • Durable aluminium alloy cheek plates

  • Central hub hole can be used as a becket take-off or tie-up point

  • Adjustable cleating angle

  • Fitted with high performance C-cleat and fairlead for secure and easy cleating

  • Versatile trunnion snap shackle

  • Provides quick & simple attachment and removal

  • 360 degree rotation with side-to-side articulation

  • Integrated becket through the hub of the lower sheave

    Sheave Ø - 2 3/8 + 1 3/16 in. (60 + 30 mm)

    Max. Rope Ø - 1/2 in. (12 mm)

    Max. Cable Ø - in. (mm)

    Pin Ø - in. (mm)

    M.W.L. - 550 lbs. (250 kg)

    B. L. - 1100 lbs. (500 kg)

    Weight - 19.0 oz. (540 g)

    Product Information

    Core Blocks™ are a true all round solution. A tuned 2-stage bearing system provides excellent performance across the full working load range with an integrated thrust bearing feature and the resilience to handle high dynamic or static loads. Acetal sheave, alloy cheeks and stainless fixings complete the durable package. For reliability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.

    Universal Bearing -

    Dynamic and high static load performance

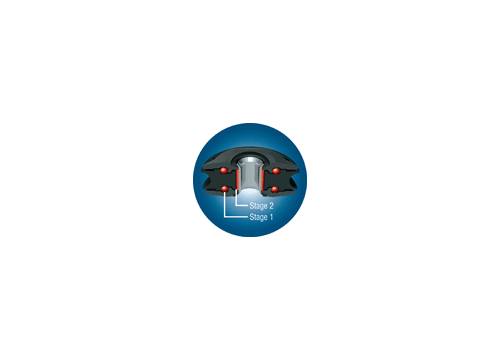

    The Ronstan Universal Bearing incorporates our proven 2-stage bearing system

    Stage 1 - Under moderate loads, Acetal ball bearings ensure minimum friction.

    Stage 2 - Under heavy loads, where deformation of ball bearings alone would result in increased friction, a sliding Acetal bearing on a polished stainless steel race takes over, maintaining low friction performance.

    Additionally the ball bearings are configured to act as a thrust bearing between the sheave and cheeks, preventing the sheave from rubbing on the cheeks and causing friction when the line lead in and out of the block isn’t perfect. Particularly important for cheek blocks.

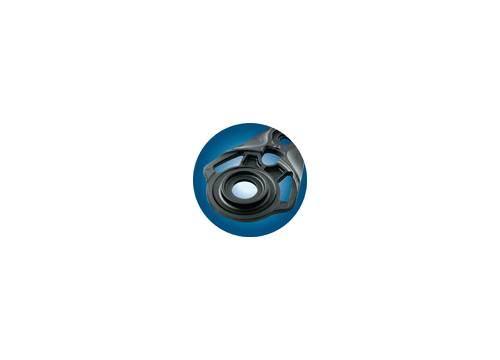

    Alloy cheek plates

    Block cheeks are manufactured from the highest quality alloy for maximum strength. Material optimization and the cut-away design minimizes weight and allows easy fresh water rinsing of salt and debris from the bearings. Cheek design has been further styled with flaring at the block throat and reduced gap between the cheek and sheave, minimizing rope wear.

    Applications

  • Ideal for mainsheet, halyard and spinnaker sheet applications on boats to 12m (40ft).

  • Various control line applications on larger yachts.

  • Alloy sheave models are available for use with wire.

  • Ideal for creating simple vang and mainsheet systems up to 4:1 on boats to 12m (40ft)

    Materials

  • Sheave: U.V. stabilized Acetal or anodized aluminium (AW models)

  • Cheek plates: Aluminum alloy

  • Ball Bearings: High compression strength carbon black Acetal

  • Snap shackle: 15-5PH investment cast stainless steel

  • Cleat: Fiber reinforced composite
