Product Description

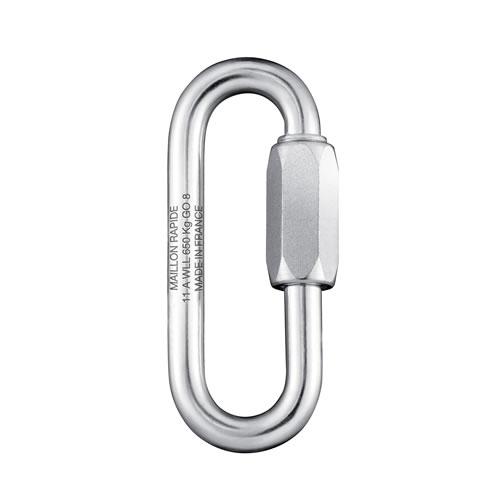

Peguet 10mm (7/16") Zicral Large Opening Maillon Rapide Quick Link
Large Opening: an alternative to the Standard shape with identical purpose, for easier connection of wider parts.

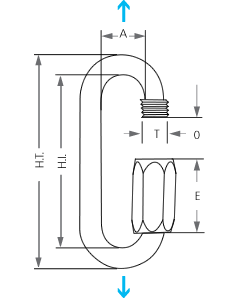

Specifications:
Diameter: 10MM or 7/16"
HT: 105.5mm
HI: 85.5mm
A: 20.5mm
O: 20.5mm
E: 36mm
T: 13mm
Weight: 56g (0.1235 lbs)
Working Load: 400kg (881 lbs)
Breaking Load: 2000kg (4409 lbs)
Material:
Zicral
Rod: 7075
Nut: 7075
Aluminum alloy, zinc, magnesium 7075 (AFNOR - USA-GB)
Good resistance to corrosion
Lightness (density 2.80)
Anti-magnetic
Good mechanical resistance
Tightening Torque:
ط F 2,5 3,0 3,5 4,0 5,0 6,0 7,0 8,0 9,0 10,0 12,0 14,0 16,0 18,0 20,0
Torque 0,15 0,30 0,60 0,70 0,80 1,20 2,50 3,00 4,50 7,00 9,00 12,00 18,00 30,00 40,00
Recommendation:
Keep to the working load limit WLL engraved in kg.
Visual check of complete nut screwing compulsory; no thread must be showing.
Maillon Rapide quick links are only to be loaded along the major axis.
Maillon Rapide quick links should be carefully checked at regular intervals. If you are in any doubt about the safety of a quick link after checking, replace it with a new one.
When fastened with a wrench up to the proper tightening torque, Maillon Rapide quick links are considered a permanent connector.
Maillon Rapide should always be fitted with parts made of same material.
When connected with chain, Maillon Rapide quick links should be of the same diameter.
Never connnect any Maillon Rapide quick links onto a lifting chain.
Stainless steel Maillon Rapide quick links may be used in salt water.
P.P.E. EN 362 & EN 12275 Standards: Maillon Rapide quick links must be accopagnied by user instructions when sold or used as a connector on P.P.E. (Personal Protective Equipment).
