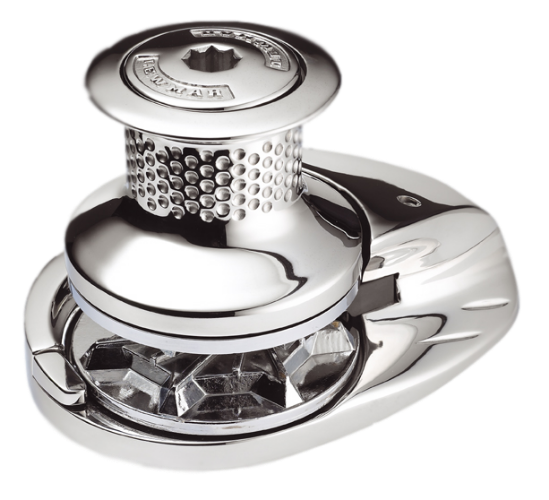

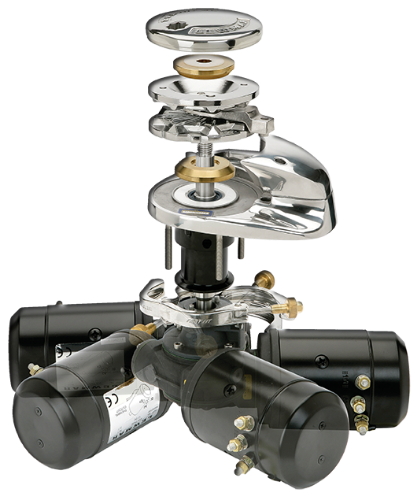

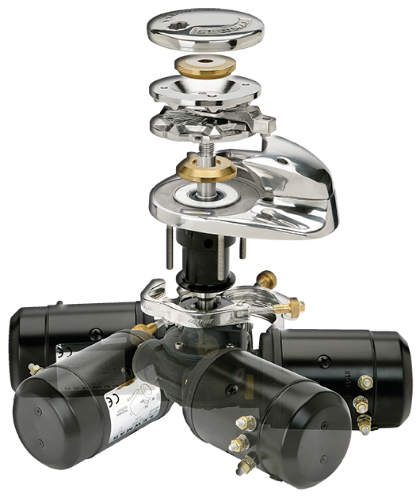

Lewmar V3 Gypsy Drum w/ FastFit 24V (002)

Item #

6672222108-142

Usually ships within 1-3 days

Product Description

Lewmar V3 Gypsy Drum w/ FastFit 24V (002)

Kit includes: Windlass, Rocker Switch, Circuit Breaker, Contactor and Winch Handle.

Dimensions

  • A - 1 11/16" (42mm)

  • B - 3" (75mm)

  • C - 6 5/16" (161mm)

  • D - 13 3/4" (348mm)

  • E - 6 3/16" (157mm)

  • F - 2 3/4" (70mm)

  • G - 9 1/8" (237mm)

  • H1 - 3 5/8" (92mm)

  • H2 - 6 5/8" (168mm)

  • I - 4 1/4" (114mm)

  • J - 12 13/16" (310mm)

  • K - 6 13/16" (173mm)

    Specifications

  • Model - V3

  • Motor Power Watts - 1000W

  • Normal Current Draw - 60A

  • Circuit Breaker - 90A

  • Max Pull - 2248 lbs. (1020 kg)

  • Max Line Speed - 98ft/min (30m/min)

  • Working Load - 535 lbs. (243 kg)

  • Normal Line Speed - 92 ft. (28m)

  • App. Weight Gypsy Only - 47 lbs. (21.5 kg)

  • App. Weight Gypsy/Drum - 54 lbs. (24.5 kg)

    Gypsy Specifications

  • Gypsy Number - 002

  • Chain Description - 10mm DIN 766, Campbell 3/8" S4

  • Rope Description - 1/2"-5/8" (12-16mm) 3-strand and 8-plait (5/8" Only)

    Cable Sizes

  • Voltage - 24V

  • Length of Cable Run - 0'-23'(0-7mm) 23'-50'(7-15m) 8 AWG (10mm²) 6 AWG (16mm²)

  • Switch Wiring - 16 AWG (1.5mm²)

  • Current Rating for Switch Wire - 5A
