Product Description
Lewmar Size 20 1" Flange Ocean Hatch
All sizes suitable for CE Area 2 (Deck, Coach roof, Cockpit and Transom).
Mounting Instructions:
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6 / 1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
Specifications

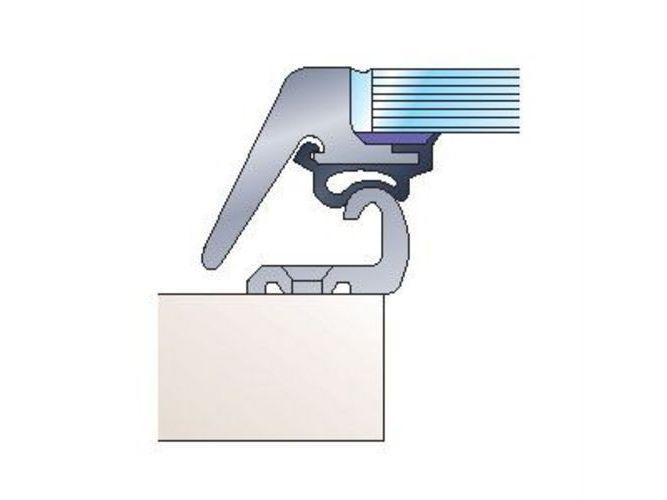

Lower Frame (in) - 1" Flange
Acrylic Color - Smoke Grey
Hatch Weight (lb) - 6.04
Acrylic Window Thickness (in) - 3/8
Dimensions
Length X (in) - 10 1/2
Width Y (in) - 16 3/16
Height Z (in) - 1 9/16
Radii R (in) - 2 11/16
Hinge Length HX (in) - 3/16
Hinge Width HY (in) - 8 7/8
Cut-Out Length (Flat/Flange) X1 (in) - 7 15/16
Cut-Out Width (Flat/Flange) Y1 (in) - 13 11/16
Cut-Out Radii (Flat/Flange) R1 (in) - 1 7/16
