Product Description

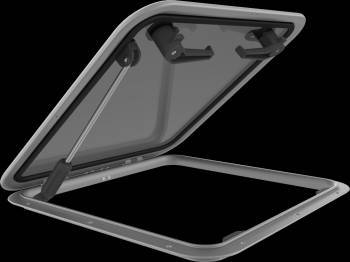

Lewmar Size 44 Low Profile Hatch w/ Stay
Size 44 Low Profile Hatch with Stay is made to order. All sizes suitable for CE Area 2 (Deck, Coach roof, Cockpit and Transom).
Mounting Instructions:
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6 / 1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
Specifications
Support System - Stay
Lower Frame (in) - 9/16
Acrylic Color - Smoke Grey
Hatch Weight (lb) - 10.6
Acrylic Window Thickness (in) - 5/16
Dimensions
Length X (in) - 20 3/16
Width Y (in) - 20 3/16
Height Z (in) - 1
Radii R (in) - 2 7/8
Cut-Out Length X1 (in) - 17 3/8
Cut-Out Width Y1 (in) - 17 3/8
Cut-Out Radii R1 (in) - 1 11/16
