Product Description

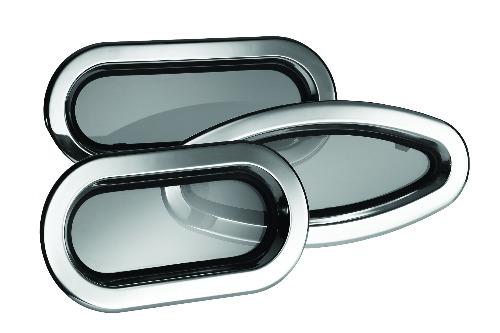

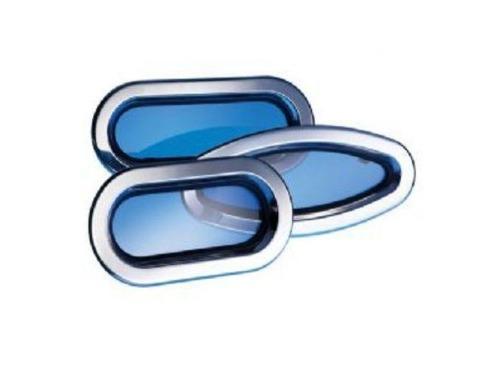

Lewmar Size 1 Fixed Stainless Portlight
Specifications
Trim Color - White
Version - Fixed
Weight (lb) - 3.8
Dimensions
X (in) - 7 1/2
Y (in) - 14 7/16
Z (in) - 3/16
R (in) - 2 7/16
X1 (in) - 6 3/4
Y1 (in) - 13 5/8
R1 (in) - 2 1/16
Acrylic Window Thickness (in) - 3/8
Mounting Instructions:
Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame.
Portlights should be fitted to a flat surface with a maximum tolerance of 1mm
Maximum hull thickness 30mm
Minimum hull thickness 9mm
Portlight opening is restricted on very thick hulls. Opening angle at 21mm hull thickness is 165.
All Portlights supplied with M5 x 20 screws (hull thickness 12-17mm)
Complete with flyscreen
