Product Description

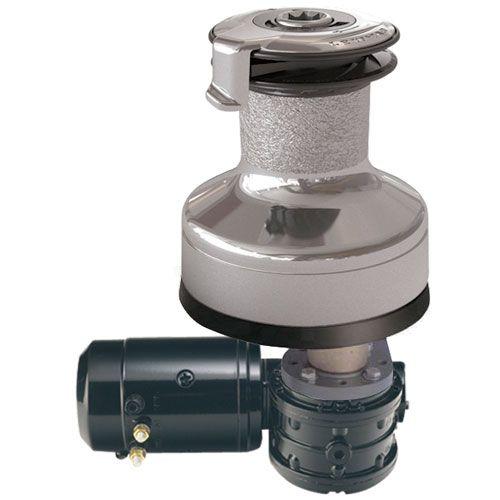

Lewmar 40EST 12V Chrome Electric Winch
Specifications
Weight (lb) - 43
Mounting - 5x 1/2 in c'sk head screws on 4 3/4 in PCD
Dimensions
B (in) - 6 1/16
D (in) - 2 7/8
H (in) - 6 13/16
L (in) - 3 3/4
M (in) - 9 1/2
N (in) - 9/16
R (in) - 6 1/8
S (in) - 4
T (in) - 1 3/8
V (in) - 2 7/8
Line Size (in) - 5/16-1/2
Mounting Instructions:
When installing a winch, Lewmar recommends the winch to be mounted on a level surface and that the rope enters the drum at an angle of 5 to 10 to the base axis of the winch. This angle can be achieved by using a base wedge when mounting the winch. Please note that not all mounting holes are symmetrical on all models.
