Product Description

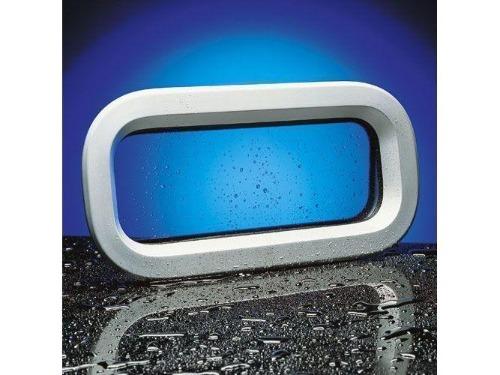

Lewmar Size 10 Atlantic Portlight
Specifications
Hull Valance - Thick
Version - Opening
Acrylic Color - Smoke Grey
Frame Color - Silver
Hatch Weight (lb) - 3.5
Acrylic Window Thickness (in) - 5/16
Dimensions
Overall Width X (in) - 6 7/8
Overall Length Y (in) - 12
Overall Height Z (in) - 1/4
Overall Radii R (in) - 2 13/16
Cut-Out Width X1 (in) - 6 1/16
Cut-Out Length Y1 (in) - 11 3/16
Cut-Out Radii R1 (in) - 2 3/8
Notes:
Portlights and fixed lights should be fitted to a flat surface with a maximum tolerance 1mm
Smoke grey acrylic and silver anodized frames
Portlight opening is restricted on very thick hulls. At 24mm hull thickness, opening angle is 115
Thick Hull Valance Fastening Required
Hull thickness 16-19mm: M5 x 20mm long (kit ref 360362999)
Hull thickness 20-24mm: M5 x 25mm long (kit ref 360361999)
Supplied as standard with thick hull valances
Fastening kits supplied in bag of 100
