Product Description

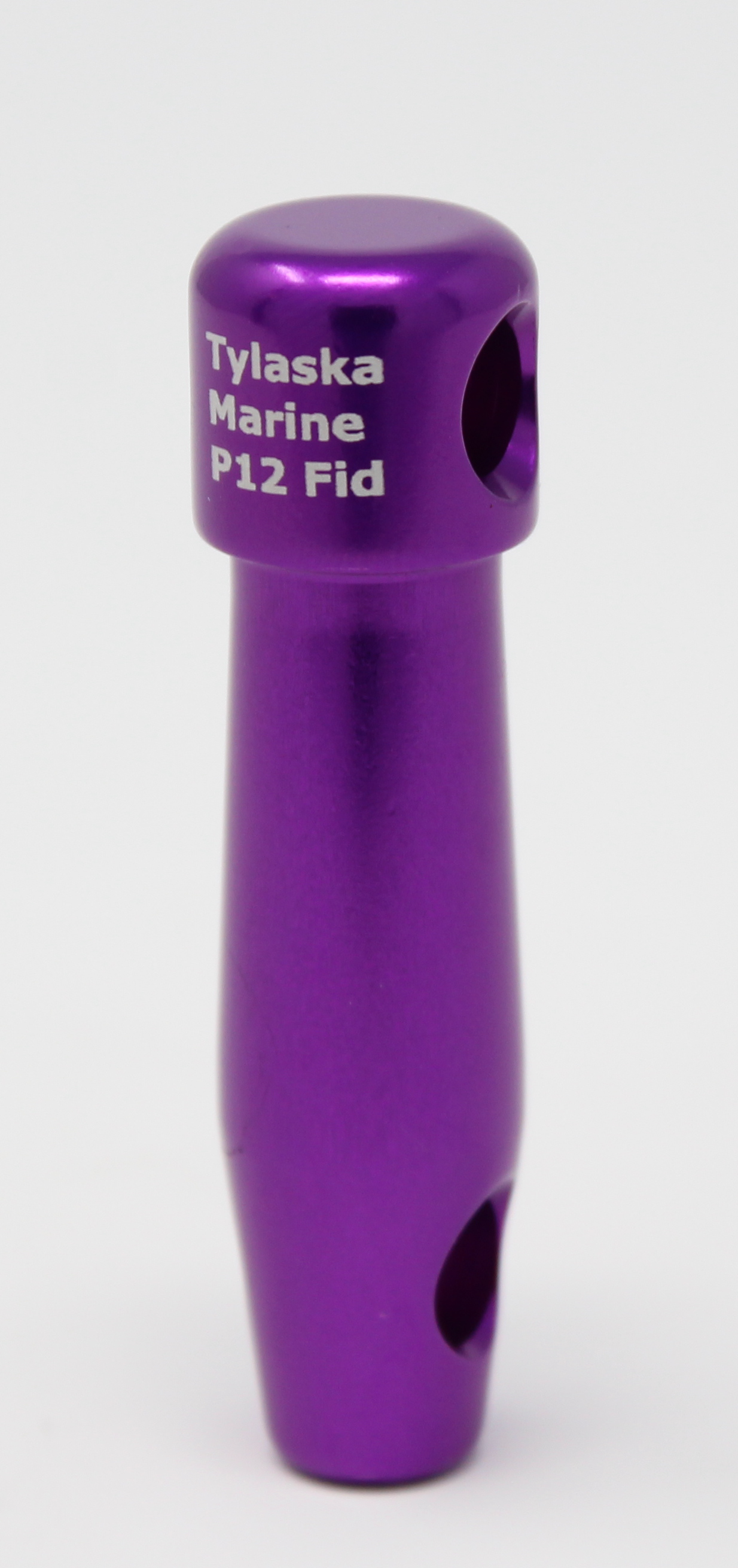

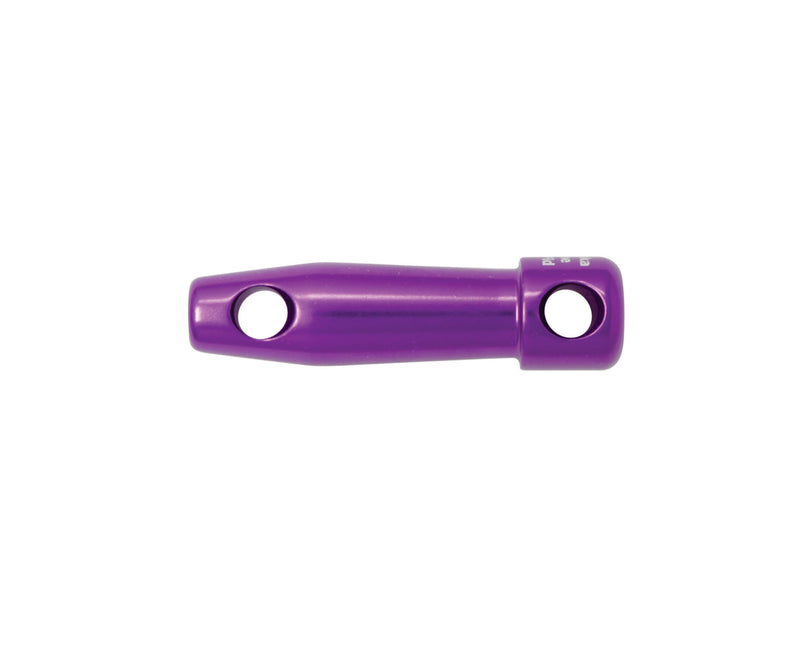

Tylaska P12-T12 Plug Fid
Description
Tylaska plug fids allow for remote release of trigger shackles. The fid is pushed into the trigger hole and the tapered rear of the fid allows the trigger to snap closed against and hold the fid in place. A lanyard can then be attached to either of two holes depending upon the desired location of remote release. For side release, the lanyard is attached to the blunt end and can be pulled out either by hand or by winch. For rear release, the lanyard is attached to the tapered end and pulled from behind. The fid pries upon the trigger and stays captive with the shackle. It can also be used with no lanyard and operated as a ‘handle’ for convenient release. The plug fid is ideal for avoiding the need to crawl out into risky locations or for single-handed or night sailing.
Specifications:
| Part No. |
Description |
|
Length A - in. (mm) |
Hole Diameter B - in. (mm) |
| TY1705 |
T5 Plug Fid |
|
1.80" (45.7mm) |
7/32" |
| TY1708 |
|
|
2.03" (51.6mm) |
1/4" |
|
|
|
|
2.35" (59.7mm) |
9/32" |
|
|
|
|
2.60" (66mm) |
9/32" |
|
|
|
|
2.83" (71.9mm)
|
9/32"
|
|
|
|
|
3.80" (96.5mm)
|
3/8"
|
