Product Description

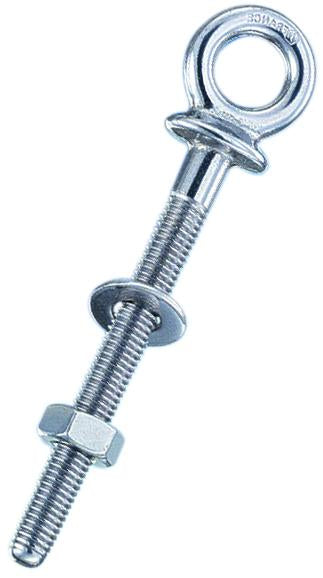

Wichard 4 3/4" Long Eye Bolt w/ 11/16" (12mm) Diameter
Features
Weight - 0.359 Lbs (163 g)
Working Load - 5291 Lbs (2400 kg)
Breaking Load - 7700 Lbs (3500 kg)

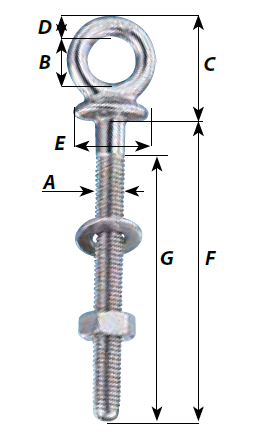

A - M12 x 175
B - 45/64" (18mm)
C - 1 39/64" (41mm)
D - 5/16" (8mm)
E - 1 3/32" (28mm)
F - 4 23/32" (120mm)
G - 4 1/8" (105mm)
Description
A complete range of single piece forged products for fastenings applications
Outstanding working and breaking loads
Available in different sizes
Maximum tightening torque: 36Nm
Applications
Various fastening applications
Towing application
Waterskiing lines attachment
Material
Grade 316L stainless steel
