Product Description

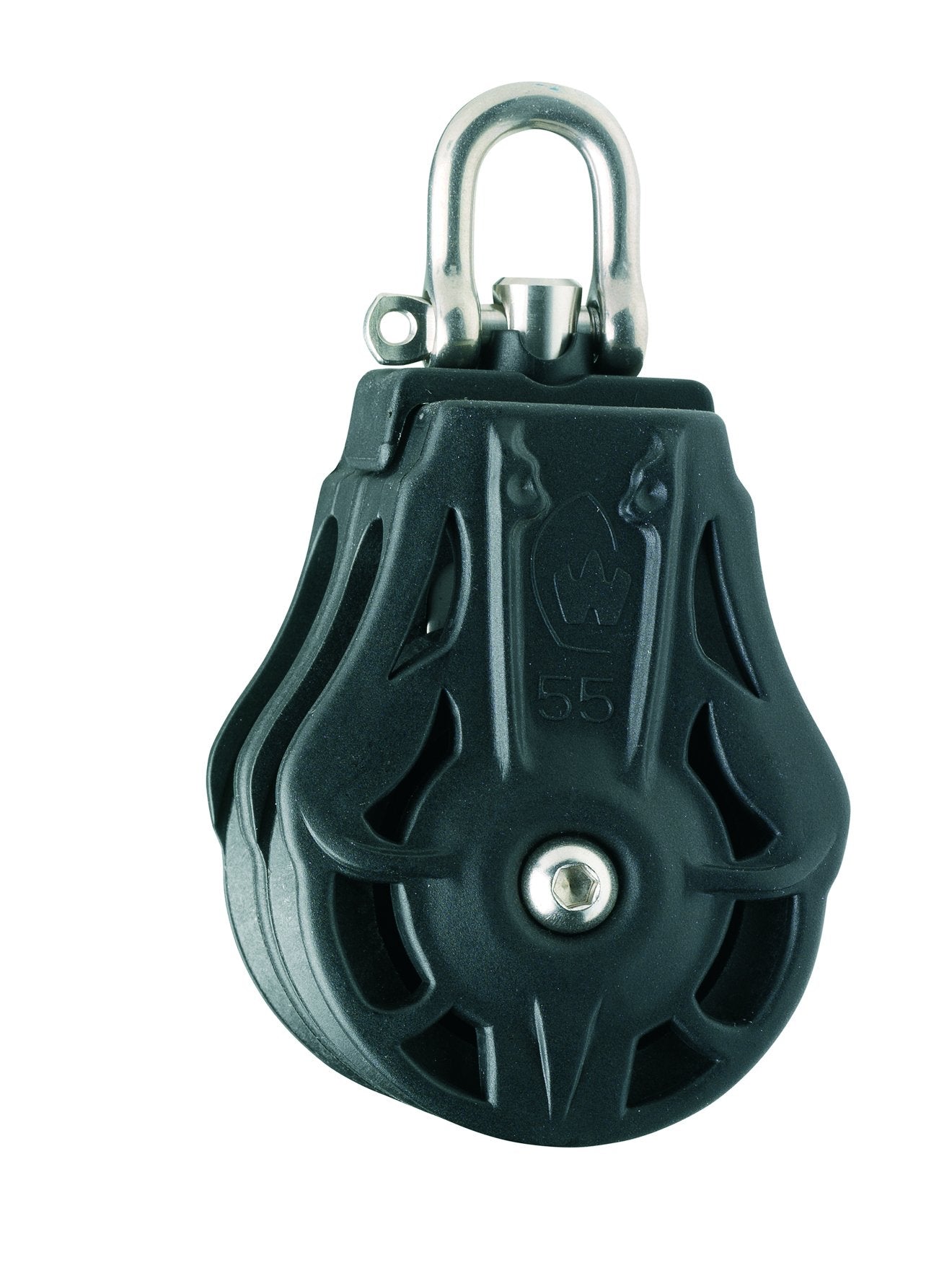

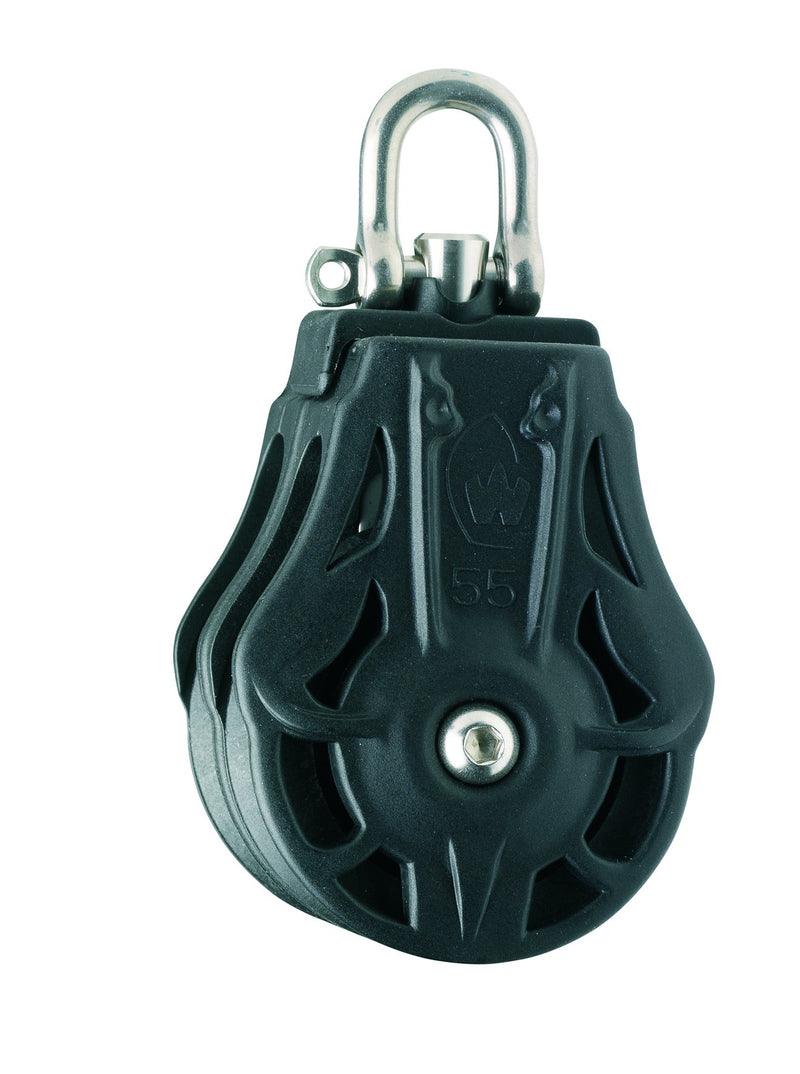

Wichard Double 1 3/8" (35mm) Block w/ Swivel Head
Features
Weight - 3.4 oz. (97 g)
Sheave Diameter - 1 3/8" (35mm)
Shackle Diameter - 13/64" (5mm)
Length - 3 1/32" (77mm)
Width - 1 29/64" (37mm)
Thickness - 2 9/32" (58mm)
Working Load - 1058 Lbs (480 kg)
Breaking Load - 1980 Lbs (900 kg)
Rope Size - 5/16"-11/32" (8mm-9mm)
Forged Shackle - 13/64" (5mm)
Applications
Mainsheet systems
Halyard applications
Boom Vangs
Spinnaker control lines on dinghies, catamaran and small keelboats
Material
Grade 316L stainless steel head configuration
Grade 316L stainless steel load straps
Polycarbonate flanges
Composite saddle for cam models
Composite sheave
