Product Description

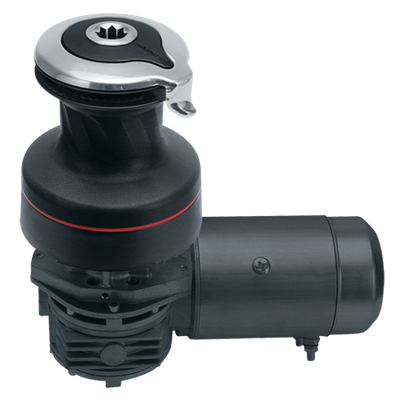

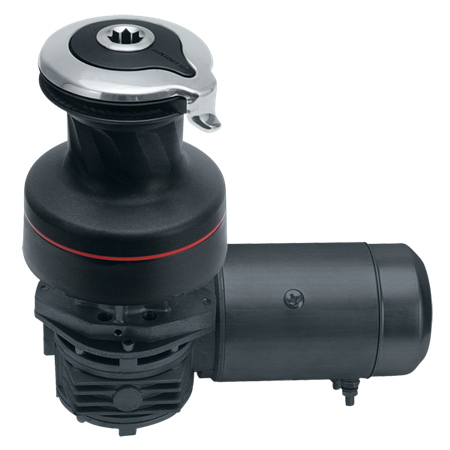

Harken #60 3 Speed Electric Self-Tailing Radial Winch - Aluminum
Specifications:
Fasteners (SH or HH) - 5/16 HH, 5/16 SH (M8 HH, M8 SH)
Number of Fasteners: 6
Gear & Power Ratio:
Gear 1 - 2.2
Gear 2 - 4.8
Gear 3 - 14.4
Power Ratio 1 - 9.2
Power Ratio 2 - 20.3
Power Ratio 3 - 61
Dimensions:
E - 2 3/4in (69mm)
F - 7 1/8in (181mm)
G - 9 5/8in (244mm)
Material: Aluminum
Configuration: Self-tailing
Speed: 3
Drum Diameter: 4 3/4" (120mm)
Base Diameter: 9 5/16" (236mm)
Height: 9 11/16" (246mm)
Weight of Winch and Motor: 49.7 lbs (22.5kg)
Motor Weight: 23.9 lbs (10.8kg)
Line Entry Height: 4 9/16" (116mm)
Minimum Line Diameter: 5/16" (8mm)
Maximum Line Diameter: 5/8" (16mm)
Fastener Circle: 8" (204mm)
Wire Gauges:
Boat Size Under - 16.4ft (5m) - 2 AWG (32mm2)
Boat Size - 16.4 (5m) to 32.8 (10m) - 0 AWG (50mm2)
Boat Size - 32.8 (10m) to 49.2ft (15m) - 00AWG (70mm2)
Boat Size - 49.2 (15m) to 65.6ft (20m) - 000AWG (95mm2)
Each electric winch requires one control box, one circuit breaker, and two analog switches or one Digital System Switch. All new electric Radial and Performa electric winches are supplied with the appropriate dual-function control box. For replacement or retrofit control boxes, contact Harken.
